DRC-703LC/RF1
    MODUM SYSTEM

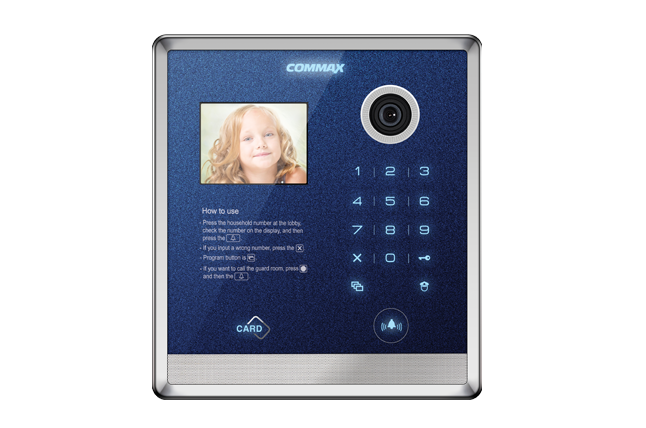

    LOBBY PHONEDRC-703LC/RF1

    Visitors make the very first acquaintance with you via the COMMAX lobbyphone and that is the reason why it has to be so special and distinguished among all of the other products. This is the world’s first premium digital type lobbyphone with tempered glass application.

      • Thumbnail

      FEATURES

      • VARIOUS ACCESS CONTROL METHODS VARIOUS ACCESS CONTROL METHODS

        Various access control methods, such as password verification, RFID card, and integrated identification control with security guard station, are provided.

      • THE WORLD’S FIRST TEMPERED GLASS THE WORLD’S FIRST TEMPERED GLASS

        Vivid resolution display with tempered glass application and clear and waterproof surface with AF(Anti-fingerprinting)application.

      • 3.5 INCH LCD 3.5 INCH LCD

        3.5 inch LCD panel with user-friendly GUI.

      FUNCTION

      • 3.5 inch TFT LED display
      • Page and call a household unit or a security guard station
      • Various verification methods(PIN number and RFID card)
      • Expandable up to 99 units of DRC-703 LC/RF1
      • Mirror view of a visitor enabled when paging

      SPECIFICATION

      Power source
      DC 12V/1A
      Power consumption
      Standby : 200mA , Maximum: 450mA
      Wiring
      UTP(Cat. 5e)
      Angle of view
      Horizontal : 68° , Vertical: 55°
      RFID card
      13.56Mhz (Optional)
      Dimension(mm)
      244(W)x270(H)x17(43)(D)

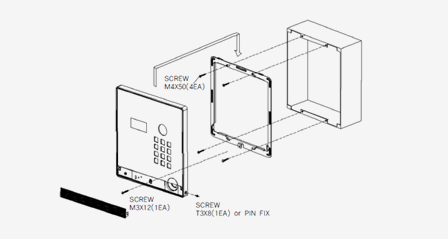

      INSTALLATION


      WIRING DIAGRAM

      WIRING DIAGRAM
