MODUM SYSTME

Modum is a multi function system which can be used in
various door entry and surveillance system.

CMP-2BCT,CMP-2BCT/RF1,CMP-4BCT, CMP-4BCT/RF1
    MODUM SYSTEM

    MODUM PANELCMP-2BCT,CMP-2BCT/RF1,CMP-4BCT, CMP-4BCT/RF1

    MODUM PANEL is available for various house types and system environments. With integrated access control features, enjoy your life safely and conveniently.

      • Thumbnail

      FUNCTION

      • Access Control(PIN number/RFID card)
      • 16 Direct buttons call
      • Page and call a household unit or a security guard station
      • Name searching through 2.4” OLED display

      SPECIFICATION

      Power source
      DC 12V, 1A
      Mount type
      Built-in(Flush mounted)
      Operating temp.
      -40℃ ~ +60℃
      RFID CARD
      13.56Mhz(optional)
      Display
      2.4” OLED display
      Image sensor
      C-MOS(Pin-hole type)
      Angle of view
      Horizontal : 47˚ Vertical : 35˚
      Lighting
      Built-in White LED
      Dimension
      130(W)x315(H)x12(38)(D)

      WIRING DIAGRAM

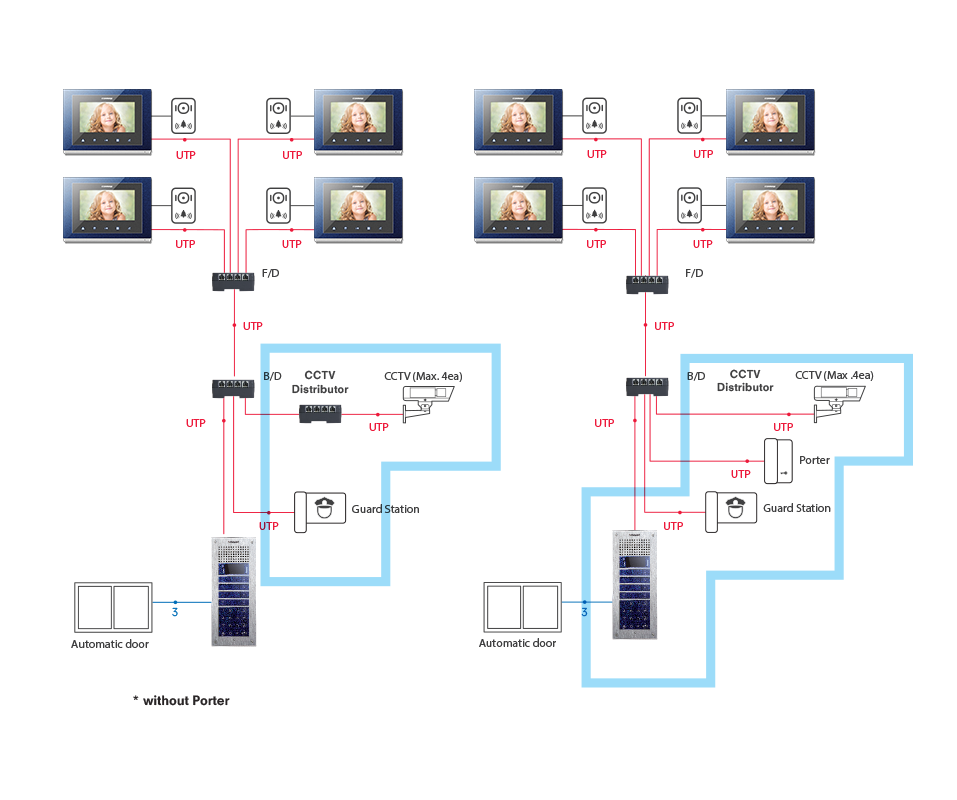

      Small apartment (UTP)


      CMV-70S Small Apartment(UTP).png

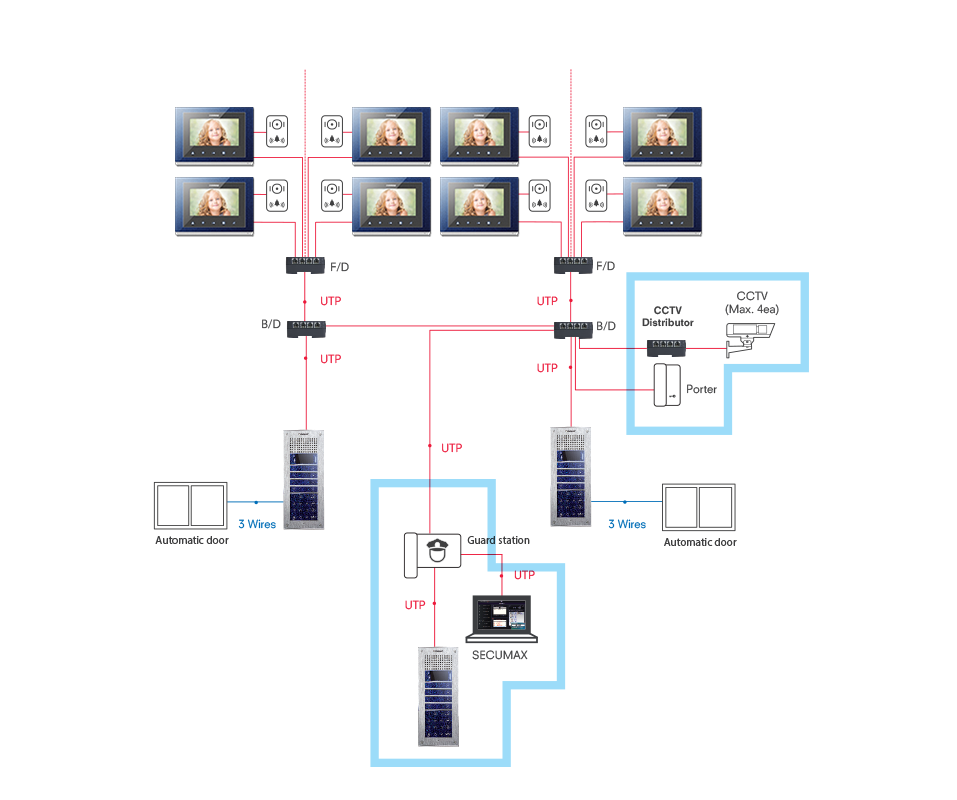

      Apartment Complex
      CMV-70S2 Apartment Complex.png
