MODUM SYSTME

Modum is a multi function system which can be used in
various door entry and surveillance system.

CMP-2BC/CMP-4BC
    MODUM SYSTEM

    MODUM PANELCMP-2BC/CMP-4BC

    MODUM PANEL is available for various house types and system environments. With integrated access control features, enjoy your life safely and conveniently.

      • Thumbnail

      FUNCTION

      • 16 / 32 Direct buttons call
      • Page and call a household unit

      SPECIFICATION

      Power source
      DC 12V, 1A
      Mount type
      Flush-mounted type
      Wiring
      Building Distributor: UTP
      Image sensor
      C-MOS(Pin-hole type)
      Angle of view
      Horiz.: 47˚, Vert.: 35˚
      Operating temp.
      -20℃~+40℃
      Dimension (mm)
      130(W)×315(H)×12(38)(D)

      WIRING DIAGRAM

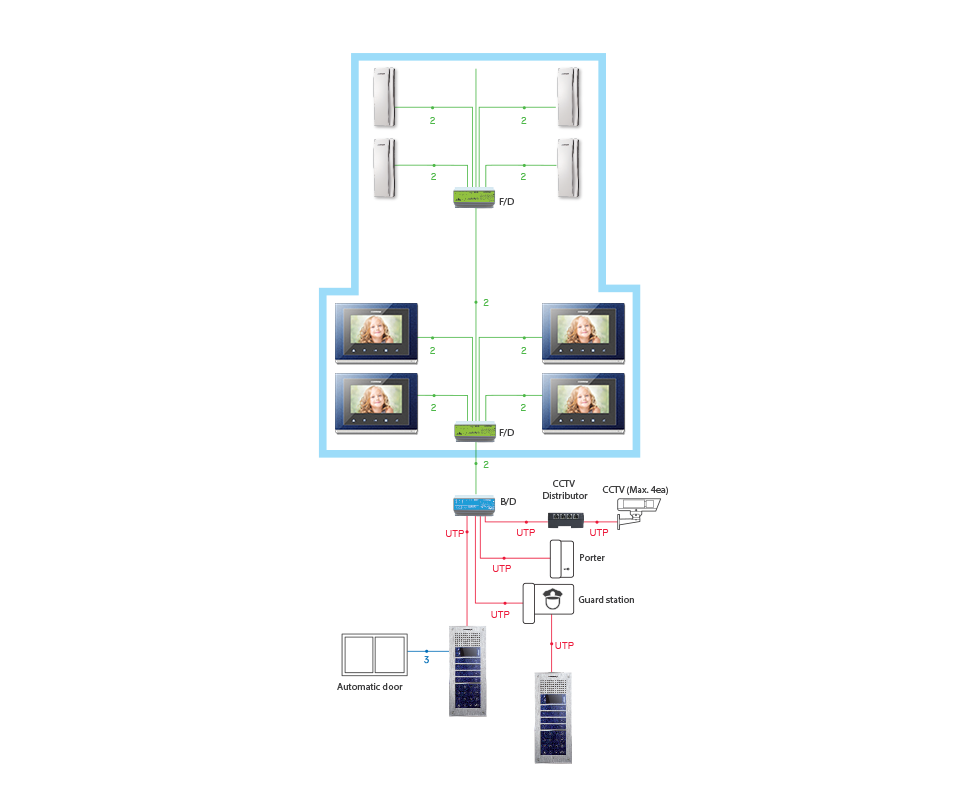

      Small Apartment (2 wires)
      CMV-70S Small Apartment (2 Wire).png

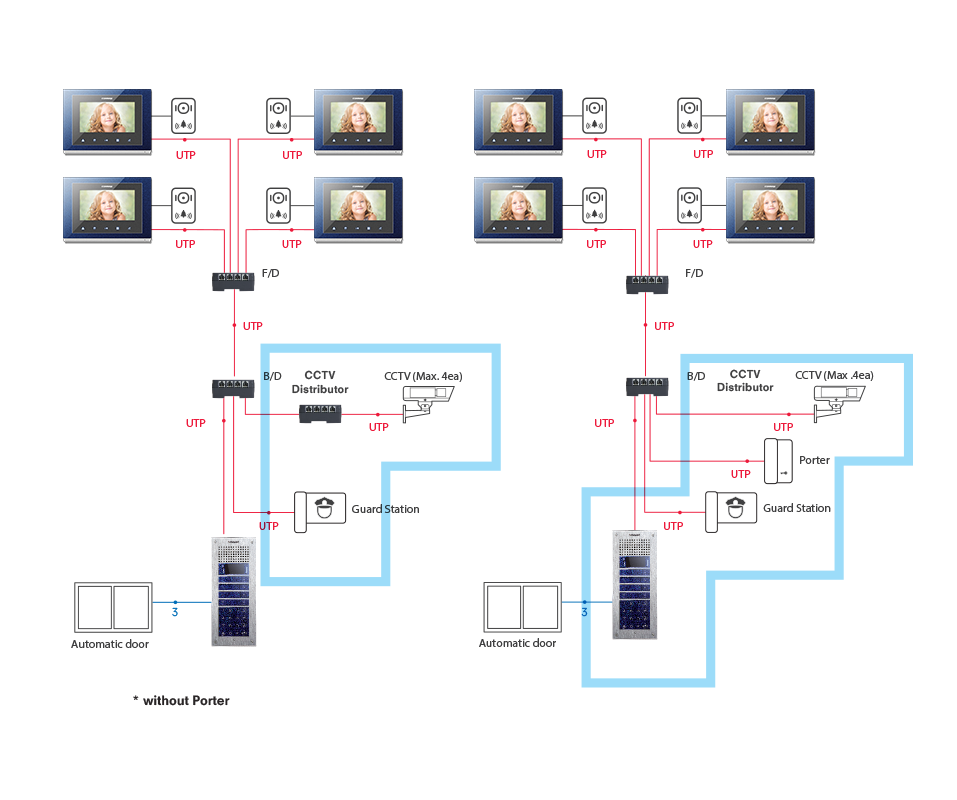

      Small apartment (UTP)


      CMV-70S Small Apartment(UTP).png

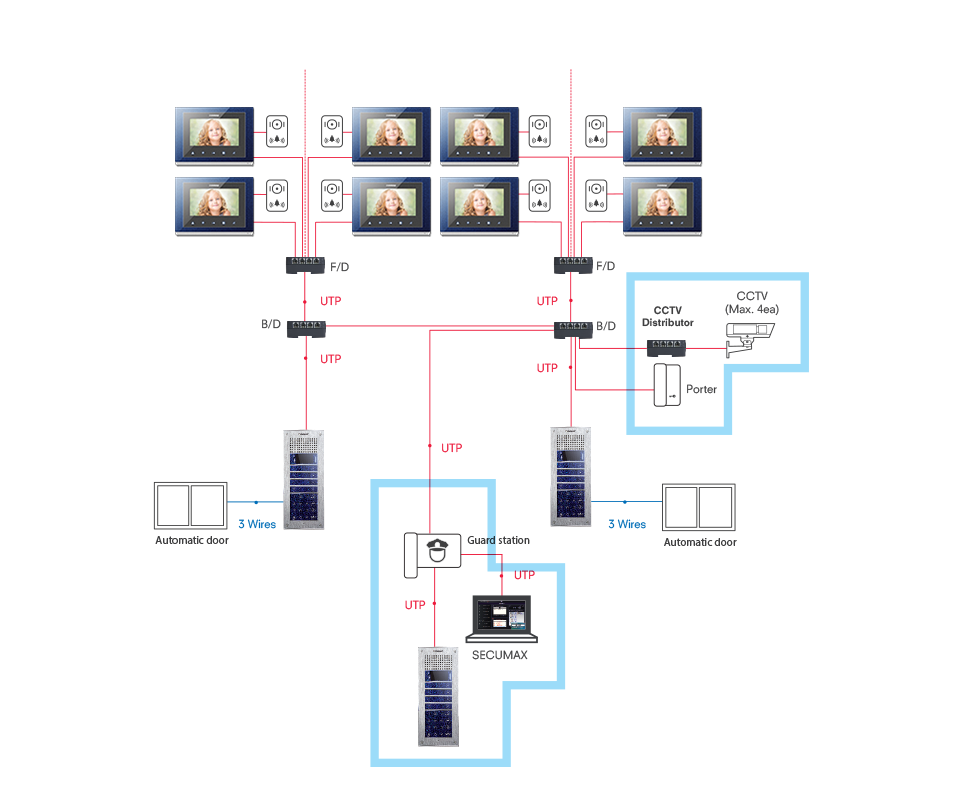

      Apartment Complex
      CMV-70S2 Apartment Complex.png
