MODUM SYSTME

Modum is a multi function system which can be used in
various door entry and surveillance system.

CMP-CTS, CMP-CTS/RF1
    MODUM SYSTEM

    MODUM PANELCMP-CTS, CMP-CTS/RF1

    MODUM PANEL is available for various house types and system environments. With integrated access control features, enjoy your life safely and conveniently.

      • Thumbnail

      FUNCTION

      • Access Control (PIN number/RFID card)
      • Page and call a household unit or a security guard station
      • Name searching through 2.4” OLED display

      SPECIFICATION

      Power source
      DC 12V, 1A
      Mount type
      Built-in (Flush mounted)
      RFID card
      13.56Mhz (optional)
      Display
      2.4” OLED display
      Image sensor
      C-MOS (Pin-hole type)
      Angle of view
      Horiz.: 47˚ Vert.: 35˚
      Lighting
      Built-in White LED
      Operating temp.
      -40℃~+60℃
      Dimension (mm)
      130x249x12(38)

      WIRING DIAGRAM


      Small Apartment (2 wires)


      CMV-70S Small Apartment (2 Wire).png

      Small apartment (UTP)


      CMV-70S Small Apartment(UTP).png

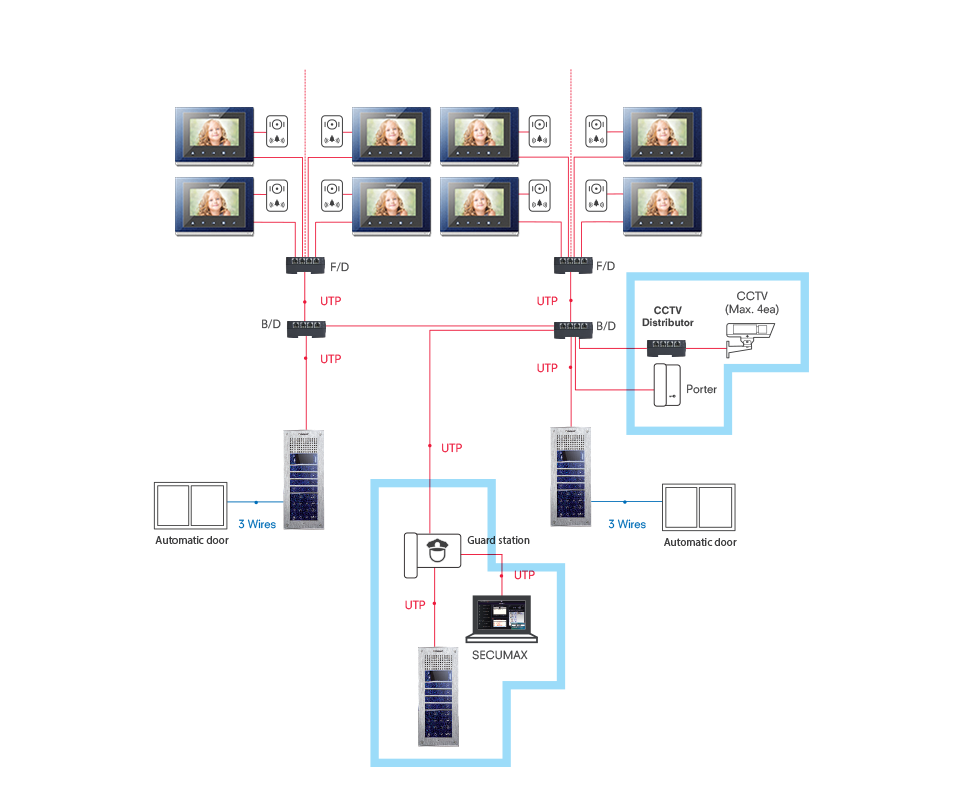

      Apartment Complex
      CMV-70S2 Apartment Complex.png
