MODUM SYSTME

Modum is a multi function system which can be used in
various door entry and surveillance system.

CMP-2BCS / CMP-4BCS
    MODUM SYSTEM

    MODUM PANELCMP-2BCS / CMP-4BCS

    MODUM PANEL is available for various house types and system environments. With integrated access control features, enjoy your life safely and conveniently.

      • Thumbnail

      Product Image

      Download Center

      Manual Download

      Specifications Print

      FUNCTION

      • 8 Direct buttons call (CMP-2BCS)
      • 16 Direct buttons call (CMP-4BCS)
      • Page and call a household unit

      SPECIFICATION

      Power source
      DC 12V, 1A
      Mount type
      Built-in (Flush mounted)
      Image sensor
      C-MOS (Pin-hole type)
      Angle of view
      Horizon.: 47˚ Vert.: 35˚
      Operating temp.
      -40℃~+60℃
      Dimension (mm)
      130x249x12(38)

      WIRING DIAGRAM

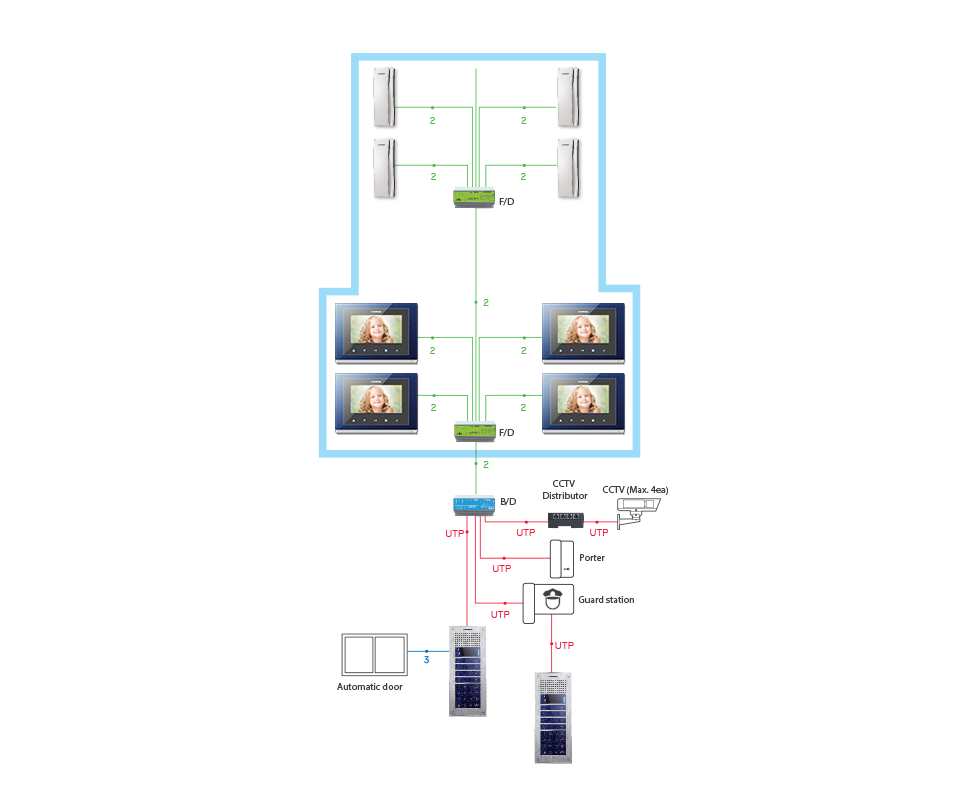

      Small Apartment (2 wires)


      CMV-70S Small Apartment (2 Wire).png

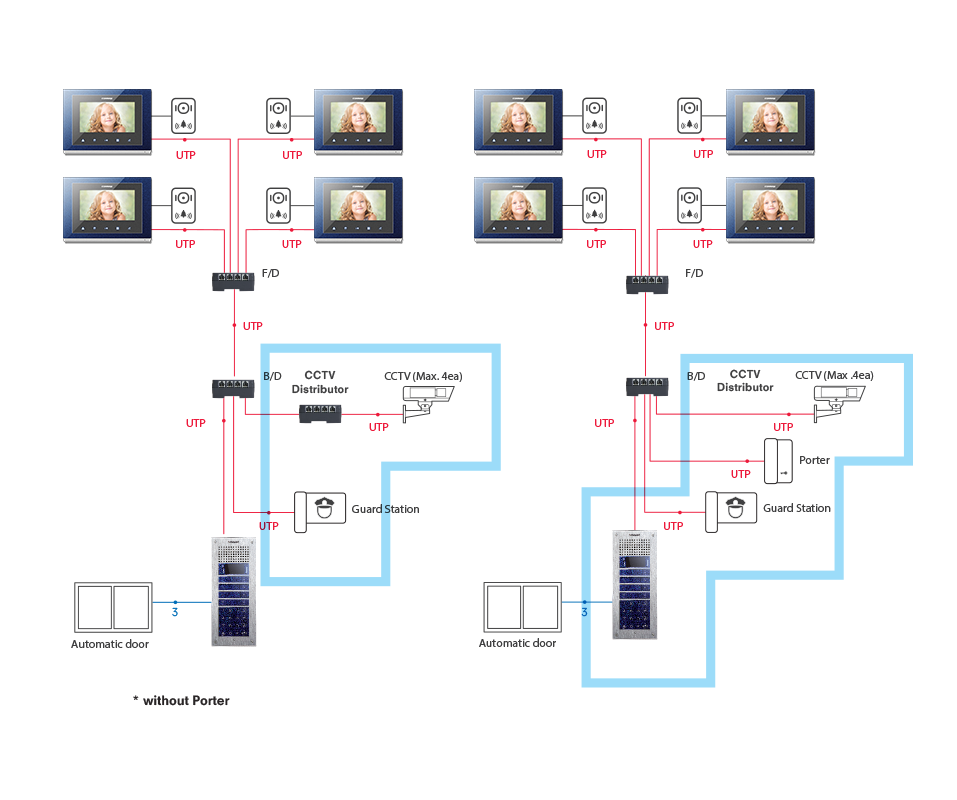

      Small apartment (UTP)


      CMV-70S Small Apartment(UTP).png

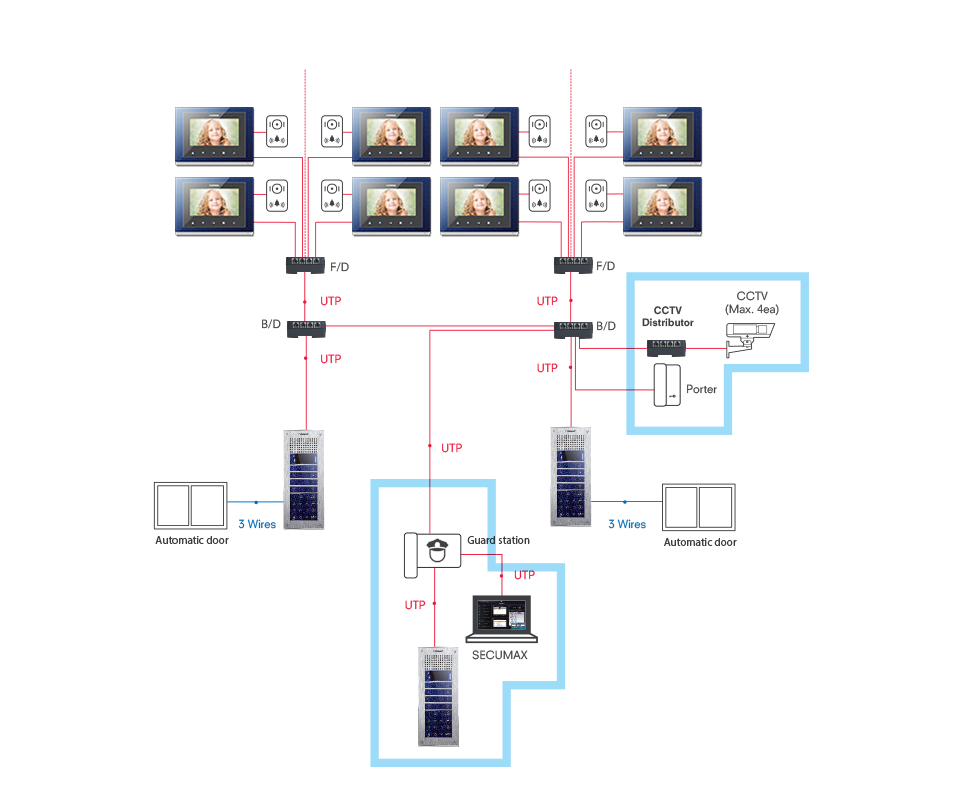

      Apartment Complex
      CMV-70S2 Apartment Complex.png
