MODUM SYSTME

Modum is a multi function system which can be used in
various door entry and surveillance system.

CMD-404FU
    MODUM SYSTEM

    FLOOR DISTRIBUTORCMD-404FU

    No limitation on the wiring all UTP. Connecting modularized distributors with CCTV cameras and FINE VIEW monitors Providing various options in audio and video systems.

      • Thumbnail

      FEATURES

      • All UTP Wiring Floor distributor
      • DC 24V ,1A (from building distributor CMD-101BU)
      • Connectable with Video Phone up to 4ea

      SPECIFICATION

      Power source
      DC 24V, 1A (From Building distributor)
      Port
      4 ports (Connectable with Video Phone up to 4 ea)
      Wiring
      Household unit-to-Floor distributor: UTP,
      Building distributor-to-Floor distributor: UTP,
      Floor distributor-to-Floor distributor: UTP
      Mount type
      Din-Rail Mounted type
      Dimension (mm)
      106(W)×76(H)×44(D)

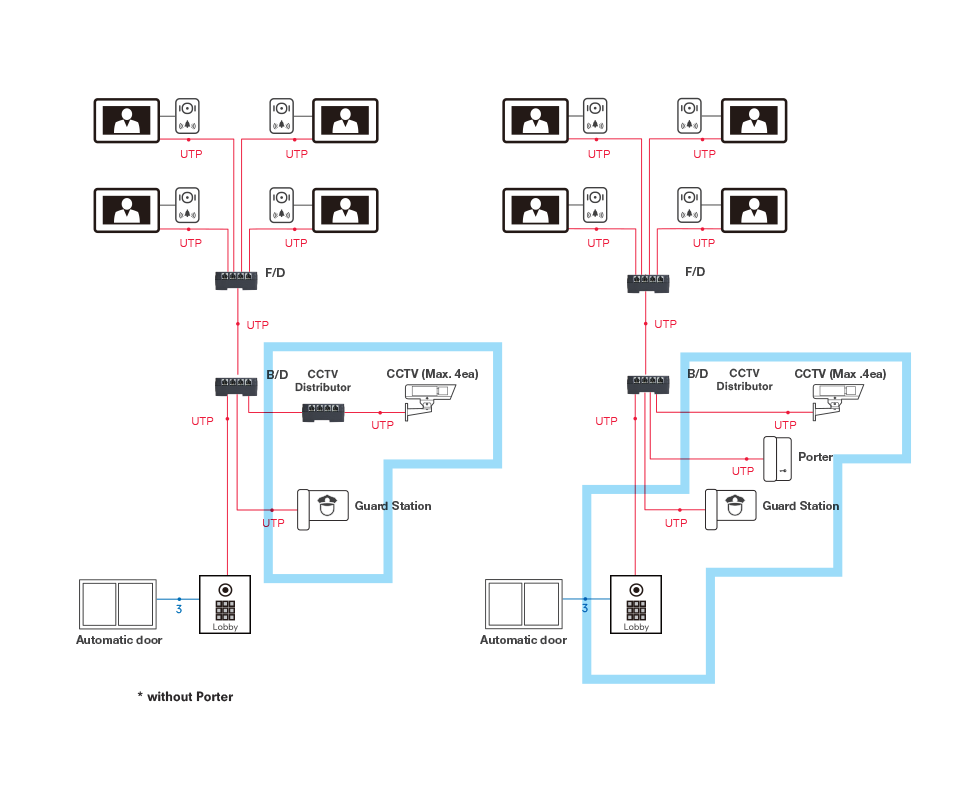

      WIRING DIAGRAM


      Small Apartment (UTP)


      CMD-404FU Small Apartment(UTP).png

      Apartment Complex
      CMD-404FU Apartment Complex.png
