MODUM SYSTME

Modum is a multi function system which can be used in
various door entry and surveillance system.

CMD-104VU
    MODUM SYSTEM

    CCTV DISTRIBUTORCMD-104VU

    Connecting modularized distributors with CCTV cameras Providing various options in audio and video systems.

      • Thumbnail

      FUNCTION

      • Connectable with CCTV Camera up to 4ea
      • Power supply to CCTV Camera

      SPECIFICATION

      Power source
      DC 14V, 4A PoD(Power on Distributor)
      Port
      4 ports (Connectable with CCTV camera up to 4 ea)
      Wiring
      -CCTV distributor-to-Building distributor: UTP,
      -CCTV distributor-to-CCTV cameras: UTP
      Mount type
      Din-Rail Mounted type
      Dimension (mm)
      106(W)×76(H)×44(D)

      WIRING DIAGRAM

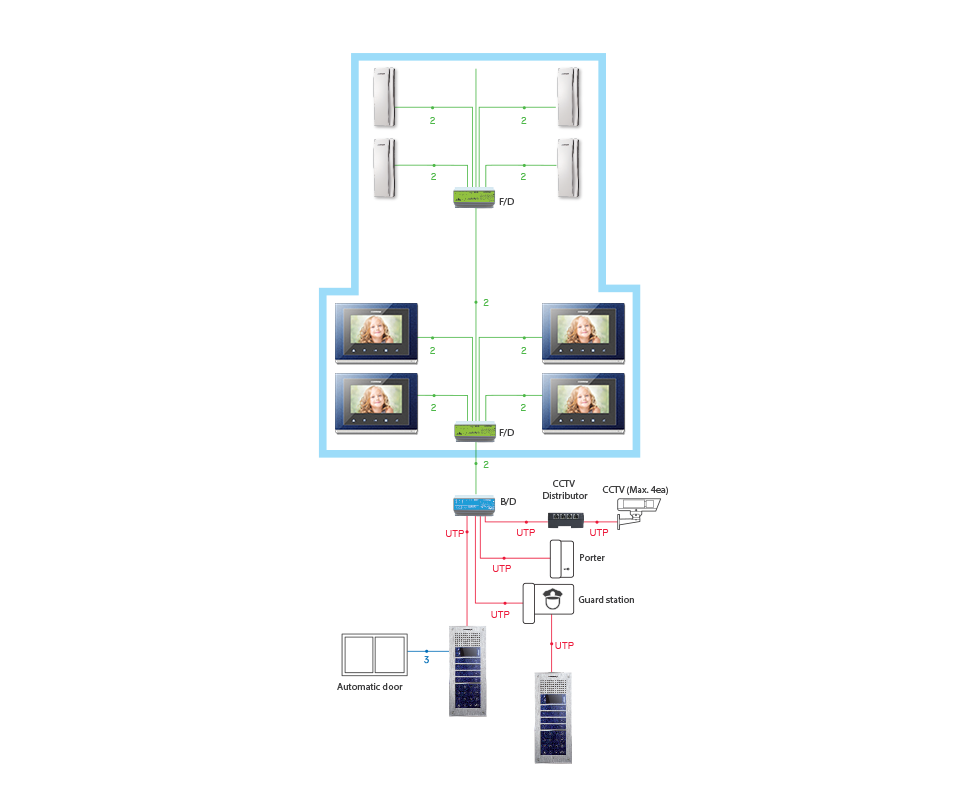

      Small Apartment (2 wires)


      CMV-70S Small Apartment (2 Wire).png

      Small Apartment (UTP)


      CMV-70S Small Apartment(UTP).png

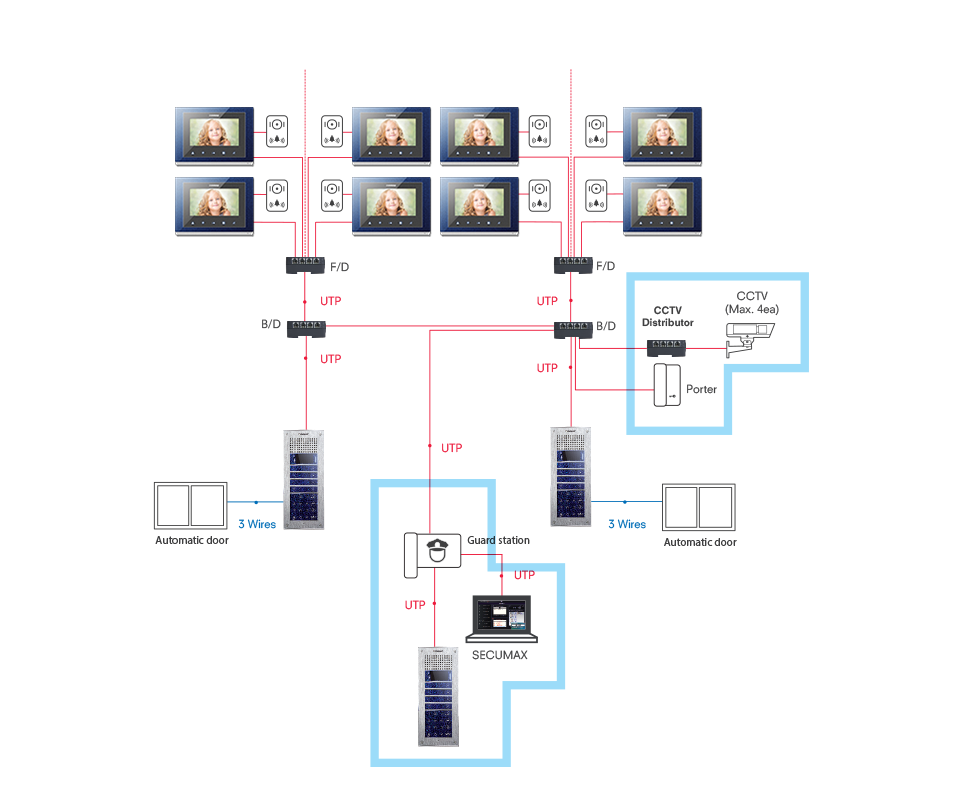

      Apartment Complex
      CMV-70S2 Apartment Complex.png
