Easy & Simple Installation

COMMAX IoT Package

Thumbnail1 Thumbnail2 Thumbnail3 Thumbnail4

HOME IoT SOLUTION

HOME IoT Package

EXPERIENCE THE DIFFERENCE

We introduce COMMAX HOME IoT Package. A package of essential products for one household! We have improved the inconvenience of purchasing and installing the system as a single unit.

  • Thumbnail
  • Thumbnail
  • Thumbnail

The difference of the COMMAX IoT package

Shorten installation and set-up times

The time for installing and setting the products on the building site is reduced by the pre-paired IoT sensors.

Special Promotion

COMMAX IoT package can be installed at a lower cost than purchasing individual products and installation by providing completed pairings.

IoT Smart Home by one package on one household

Commax Home IoT package is composed of IoT essential elements. It is possible to control the basic function of Smart Home including common entrance and individual entrance control by integrating smartphone.

Utilizing a variety function of safety and convenience features by adding IoT sensors and devices

A door open detection, gas leaking detection sensors and a smart switch are included in one package. You can add more various COMMAX IoT sensors by easy and simple. You can check the in/out house view on your smartphone by connecting the CCTV.

[Home IoT Package]

Package Components

CIOT-700M"

CIOT-700M | IoT Monitor

  • Vivid Metallic Design
  • 7 inch Multi touch LED Display
  • Connecting IoT device
  • Severless(Use COMMAX Cloud)
  • Auto detecting slave monitor
  • Connecting ACC alarm
  • Ethernet 10/100 with PoE
  • 1G DDR/8G eMMC Memory
  • TCP/IP Communication
  • Link with smart phone(Call, Talk, Control)
  • Security, disaster prevention function

SPECIFICATION

Power Source
PoE S/W
Display
7 inch LED Display/Multi Touch
Mount Type
Wall-mounted type
Resolution
1024 x 600
OS
Android 6.0
CPU
Quad core(Cortex A9)
VIDEO
H.264 / Onvif
Dimension(mm)
244(W)×180(H)×23(D)

Read More
DRC-4M

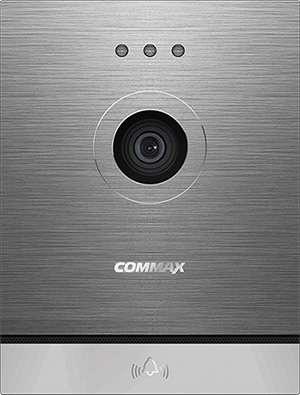

CIOT-D20M | Door Camera

  • Metal front Material applied
  • Door Lock Release (DC Type)
  • Link with smartphone (call,talk)
  • SIP-based VoIP system
  • Touch button
  • Digital Doorlock connectable

Read More

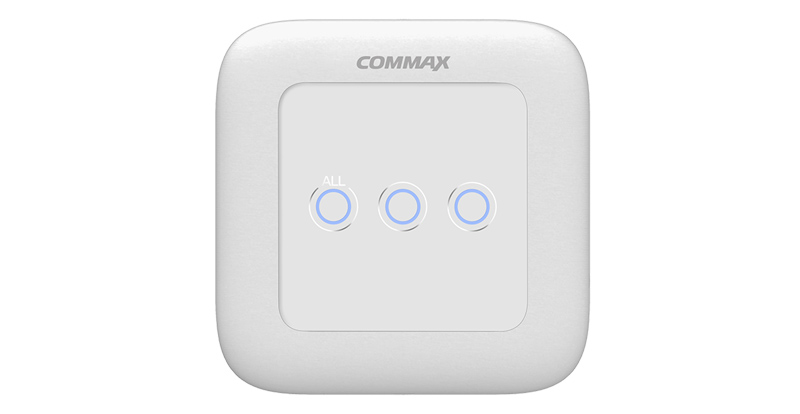

CIA-ZES03 | IoT Switch

  • Bulk light control / Light control
  • Zigbee communication support
  • Real time status feedback
  • Sensitive touch control
  • Overload protection

Read More
CIA-ZES03
CIS-PM01

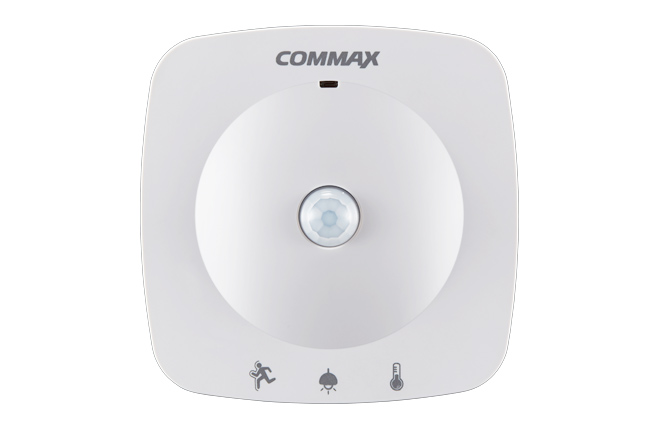

CIS-PM01 | PIR SENSOR

  • Motion detection
  • Temperature & Humidity detection
  • Low power consumption
  • ZigBee communication support

Read More

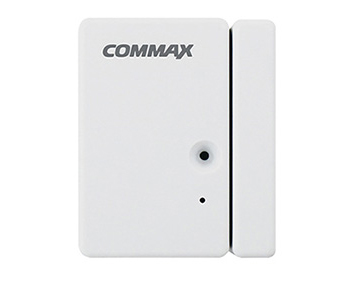

CIS-MD01 | MAGNETIC SENSOR

  • Door open detection
  • Zigbee communication support
  • Low power consumption

Read More
CIS-GD01
CIOT-H4L2

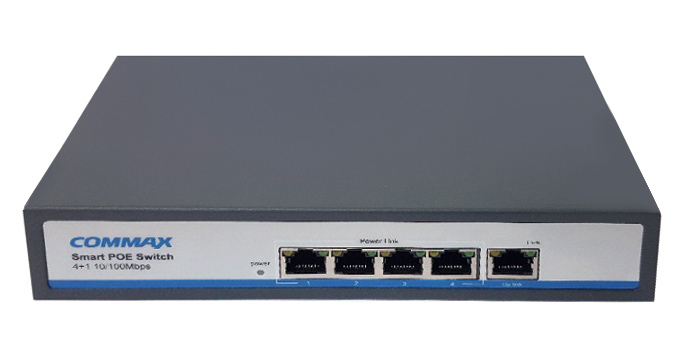

CIOT-H4L2 | 4(8) PORT PoE S/W

  • 4(8)ch x 100Mbps port
  • 4(8)ch x supporting network cable powering
  • 4(8)ch x cascading LAN interfaces
  • Flush-mounted voltage-stabilized power
  • Connecting device to device

Read More

WIRING DIAGRAM

ciot-kit-system
