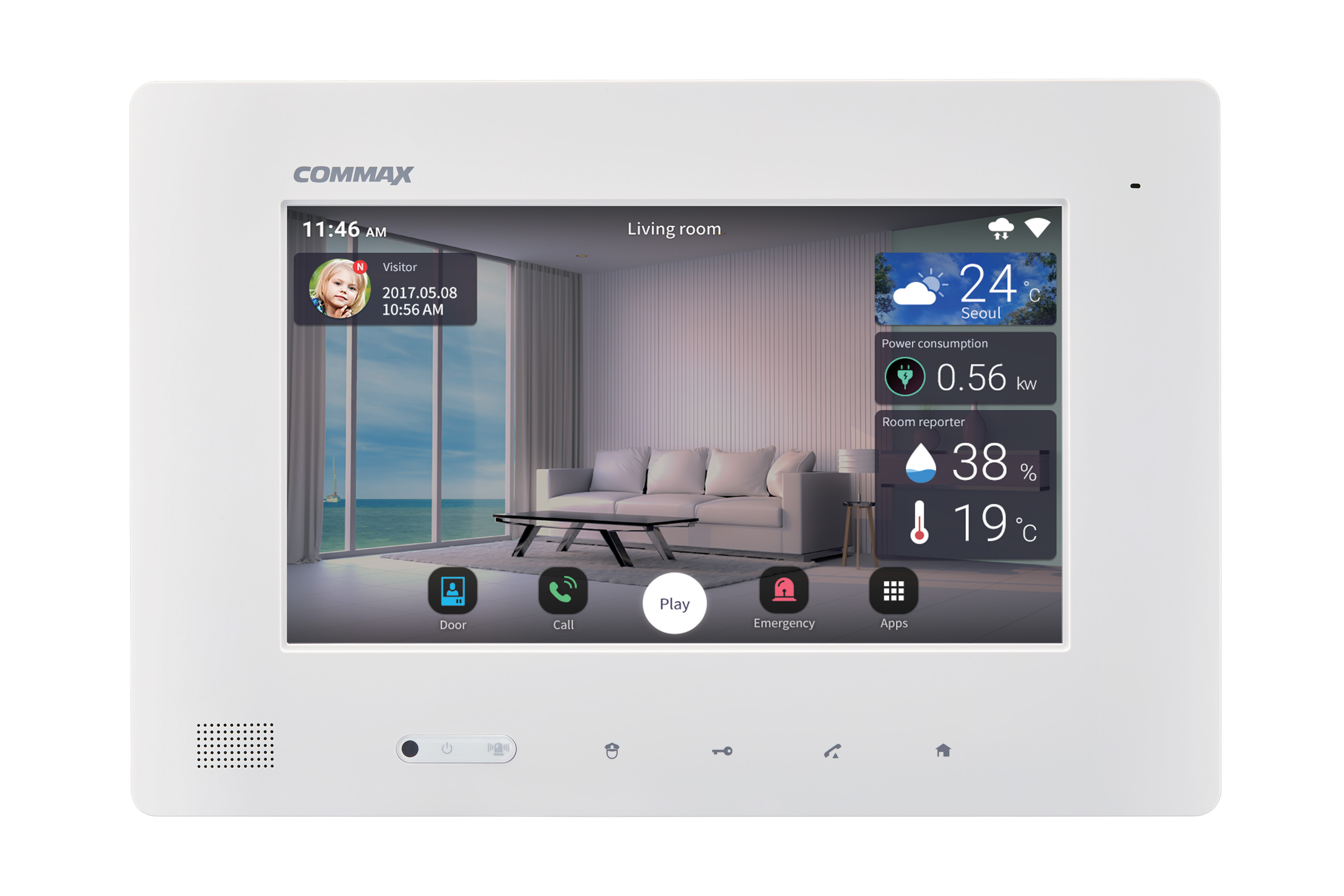

CDP-1020IB
    SMART HOME

    WALL PADCDP-1020IB

    CDP-1020IB is applied to the GUI of the full touch allowing customers easy-to-use, also it is available for a variety of amenities and services such as energy management systems, interlocking security and health care services.

      • Thumbnail

      FEATURES

      • WHITE design WHITE design

        It makes the living room more elegant atmosphere by applying a white color.

      • Energy Management System (EMS) Energy Management System (EMS)

        It is available for efficient energy management without the constraints of place and space through real-time energy monitoring.

      • Enhanced covenient functions Enhanced covenient functions

        It provides information and services regarding various public facilities in real time.

      FUNCTION

      • 10.1 inch TFT LED display
      • Video talk and door release function enabled
      • Telephone function enabled
      • Home devices control enabled
      • Security • Healthcare • Remote control
      • EMS(Energy Management System)

      SPECIFICATION

      Power source
      DC14V, 2A
      LCD size
      10.1 inch TFT LED display
      Mount type
      Built-in(Flush-mounted type)
      Data transmission
      TCP/IP, RS 485
      Wiring
      LAN(CAT.5e)
      Memory
      DDR Memory 256MB
      Dimension(mm)
      318×215×18(61)

      INSTALLATION

                                                                                                                                                                   Unit: mm

      WIRING DIAGRAM

      WIRING DIAGRAM
