    SMART HOME

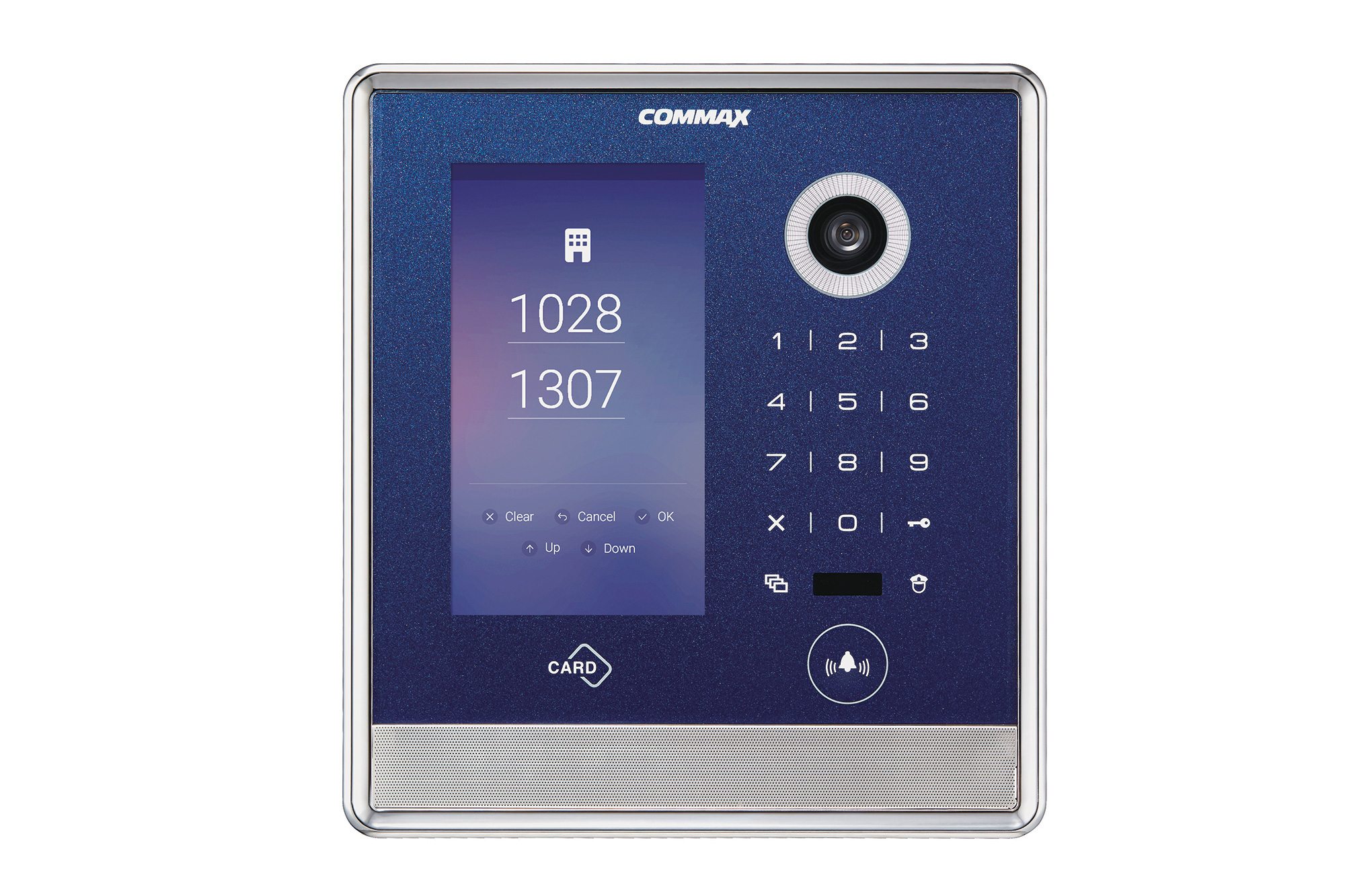

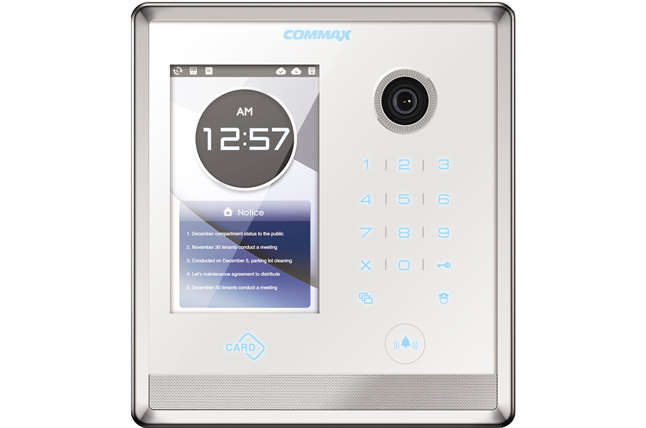

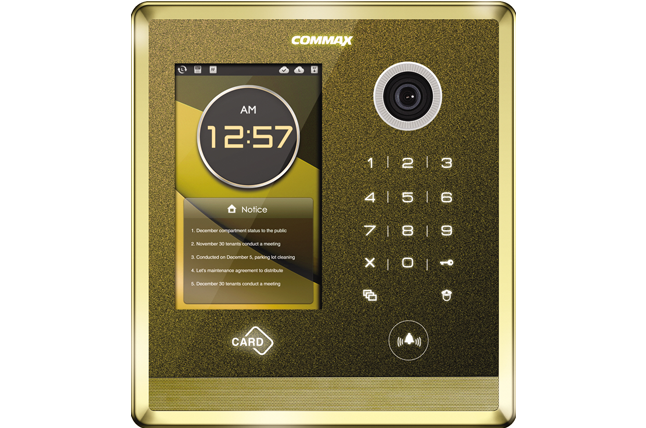

    LOBBY PHONEDRC-703S

    Visitors make the very first acquaintance with you via the COMMAX LOBBY PHONE and that is the reason why it has to be so special and distinguished among all of the other products. This is the world’s first premium digital type lobbyphone with tempered glass application.

      • Thumbnail
      • Thumbnail
      • Thumbnail

      FEATURES

      • Elegant design Elegant design

        Applying stainless steel frame and crystal-clear tempered glass, resistant to pollution AF (anti-fingerprint coating) GLASS.

      • 7-inch TFT LED Display 7-inch TFT LED Display

        Applying 7-inch TFT LED display to provide the convenient and intuitive information to the users.

      • Stainless steel Stainless steel

        Maintained cleanliness and enhanced durability with stainless steel in harmony with Indigo Blue color.

      • High-definition images with 41 million pixels camera High-definition images with 41 million pixels camera

        Available to check visitor calls more clearly through tranmission of high definition video images in household with 41 million pixels camera.

      • Triple security system  Triple security system

        More powerful triple security system with password, RFID card and door release through household and security office.

      FUNCTION

      • Overall tempered glass
      • 7 inch TFT LED display
      • AF(Anti-Finger printing) coating
      • Public information display / weather & time display / voice announcement
      • Auto panel-lighting control by proximity sensor / multiple access control method (password/RFID card)
      • Househould unit call
      • Security office call

      SPECIFICATION

      Power source
      DC 14V, 2.5A
      Mount type
      Flush-mounted type / Surface-mounted type
      RFID card
      13.56Mhz
      Wiring
      UTP(CAT. 5e)
      Distance
      LAN session : 100m (from switching hub)
      Dimension(mm)
      244×270×17(43)

      INSTALLATION

      CAUTIONS FOR INSTALLATION

      WIRING DIAGRAM

      WIRING DIAGRAM

      ACCESSORY

      ACCESSORY CONTENTS QUANTITY(EA)
      Communication connector CONN. 2P×300mmCONN.
      3P(3.96)×250mmCONN.
      3P×300mmCONN.
      4P×300mmCONN.
      5P×250mmCONN.
      8P×300mm
      2
      1
      1
      1
      2
      1
      Products Fixed screw Screw PHM 3×8 NI 2
      Wall fixing screw Screw FHM 4×50 ZnY 4
      Wall bracket 1
