GATE VIEW SYSTEM

COMMAX Gate View System is
developed and optimized for small and medium-sized apartment complexes.

CAV-70MGX+CAV-70MGX+
  • IoT
GATE VIEW | GATE VIEW MONITOR

CAV-70MGX+

CAV-70MGX+ is developed and optimized for small and medium sized apartment complexes.

COLOR(CASE/WINDOW)
L. SILVER/BLUE
D. SILVER/BLUE
WHITE/WHITE
L. SILVER/BLACK SMOG
D. SILVER/BLACK SMOG
    • Thumbnail
    • Thumbnail

    FUNCTION

    • Connecting IoT devices
    • Link with a smartphone(Call, Talk, Control)
    • 7 inch touch LED Display
    • Electric, lighting, gas remote control(wired or wireless)
    • Real-time CCTV monitoring through DVR
    • Elevator call function
    • Guard call & talk
    • Storing visitor video

    SPECIFICATION

    Power source
    AC 100-240V, 50/60Hz
    Display
    7-inch touch LED Display
    Mount type
    Wall-mounted type
    Operating temp.
    0℃~40℃
    Wiring
    UTP(CAT. 5e)
    Consumption
    Maximum: 15W
    Protocol
    Wi-Fi 2.4Ghz, IEEE 802.15.4,
    Zigbee HA 1.2(Compatible)
    Distance
    Lobby phone: 300m
    Security office : 1Km
    Dimension(mm)
    244(W)×180(H)×18(D)

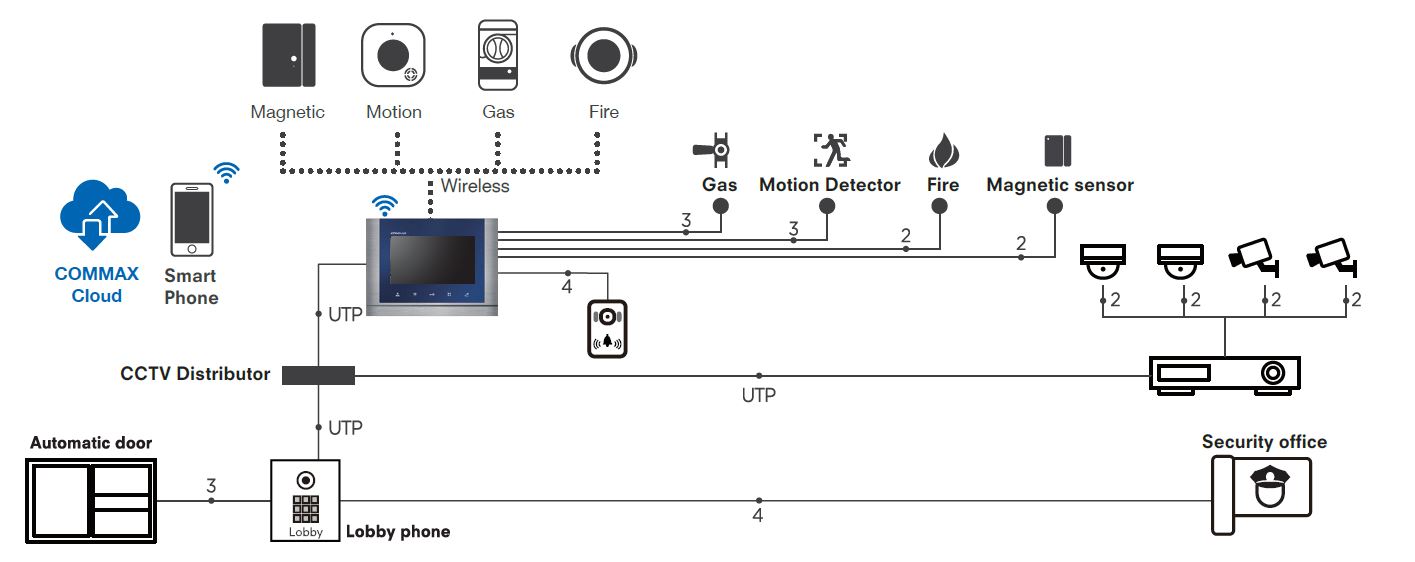

    WIRING DIAGRAM
