GATE VIEW SYSTEM

COMMAX Gate View System is
developed and optimized for small and medium-sized apartment complexes.

CAV-70MG+CAV-70MG+
GATE VIEW | GATE VIEW MONITOR

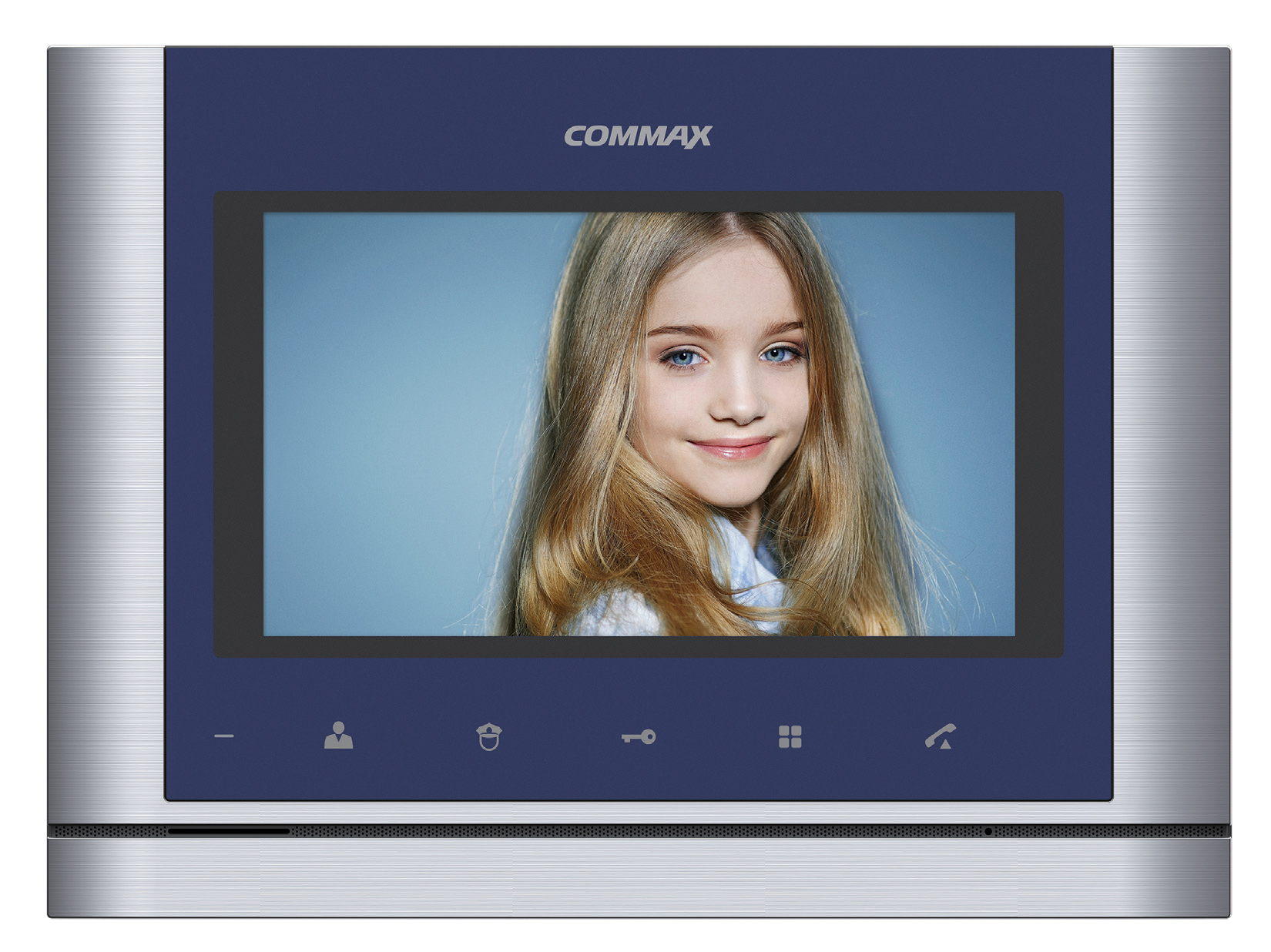

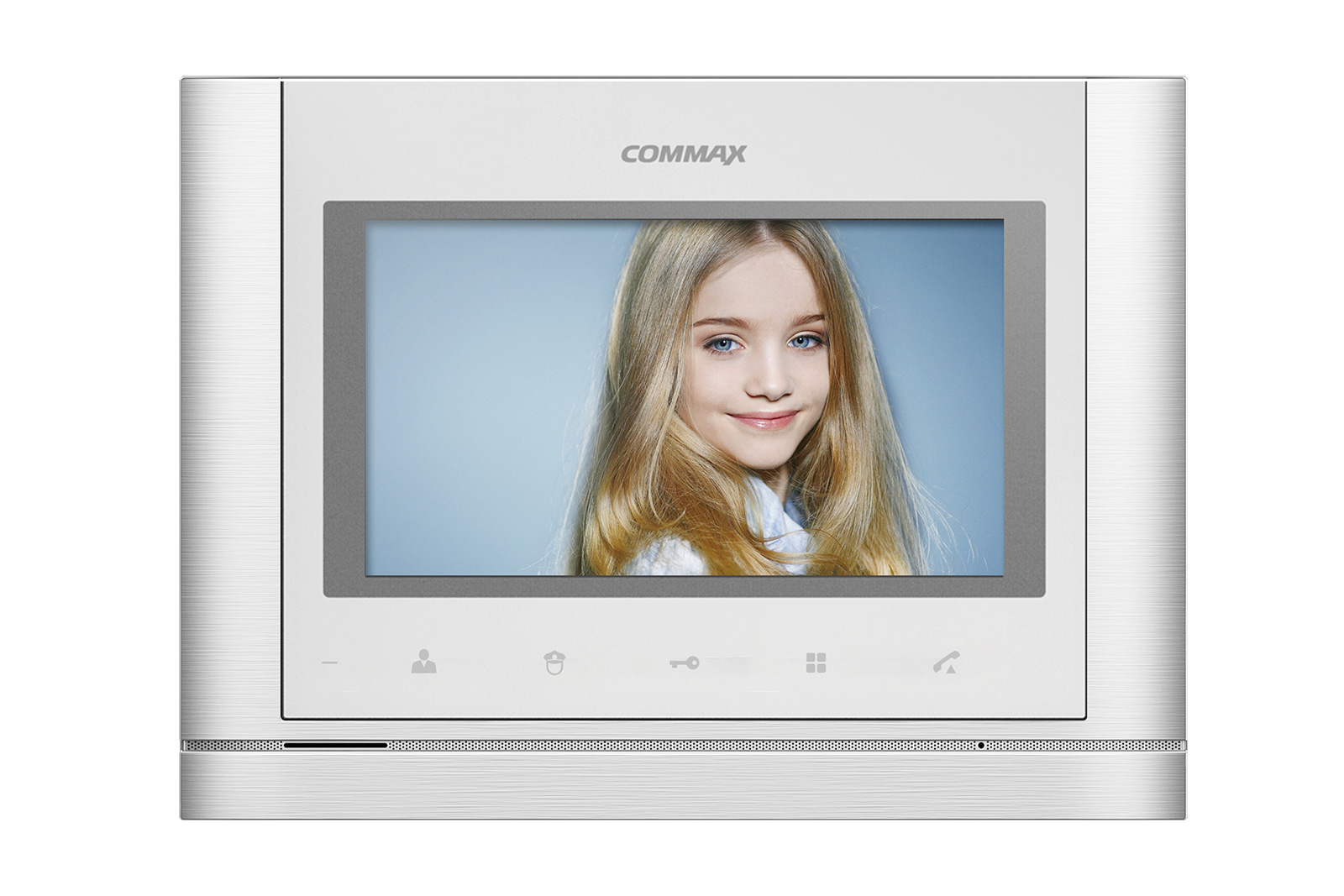

CAV-70MG+

CAV-70MG+ is developed and optimized for small and medium sized apartment complexes.

COLOR(CASE/WINDOW)
L. SILVER/BLUE
D. SILVER/BLUE
WHITE/WHITE
W. PEARL/W. PEARL
D. SILVER/MIRROR
L. SILVER/MIRROR
W. PEARL/MIRROR
WHITE/MIRROR
WHITE/BLACK SMOG
L. SILVER/BLACK SMOG
D. SILVER/BLACK SMOG
    • Thumbnail
    • Thumbnail
    • VIVID METAL DESIGN

      It creates luxurious atmosphere with a vivid metal design.

    • ENHANCED SECURITY

      Enhanced security features provide a better-unmanned security and access control system.

    • CONVENIENCE

      Touch-screen with user-friendly GUI application and various convenience functions enabled.

    FUNCTION

    • CCTV Monitoring with VD-202G+ (Expandable up to 8 CCTV cameras)
    • 7 inch LED Display
    • Video talk and door lock release enable (both individual and public entrance)
    • Guard call & talk
    • OSD

    SPECIFICATION

    Power source
    AC 100-240V, 50/60Hz
    Display
    7 inch LED Display
    Mount type
    Surfaced-mounted type
    Operating temp.
    0oC~40oC
    Wiring
    UTP(CAT. 5e)
    Consumption
    Max.15W
    Distance
    Lobby phone : 300m
    Security office : 1Km
    Dimension(mm)
    244(W)×180(H)×18(D)

    WIRING DIAGRAM
