GATE VIEW SYSTEM

COMMAX Gate View System is
developed and optimized for small and medium-sized apartment complexes.

CAV-70MG
    GATE VIEW

    GATE VIEW MONITORCAV-70MG

    CAV-70MG is developed and optimized for small and medium sized apartment complexes.

      • Thumbnail

      FEATURES

      • VIVID METAL DESIGN

        It creates a luxurious atmosphere with a vivid metal design.

      • ENHANCED SECURITY

        Enhanced security features provide a better-unmanned security and access control system.

      • CONVENIENCE

        Touch-screen with user-friendly GUI application and various convenience functions enabled.

      SPECIFICATION

      Power source
      AC 100-240V, 50/60Hz
      Display
      7 inch LED Display
      Mount type
      Surface-mounted type
      Operating temp.
      0℃~40℃
      Wiring
      UTP(CAT. 5e)
      Consumption
      Max.15W
      Distance
      Lobby phone: 300m
      Security office : 1Km
      Dimension(mm)
      244(W)×180(H)×18(D)

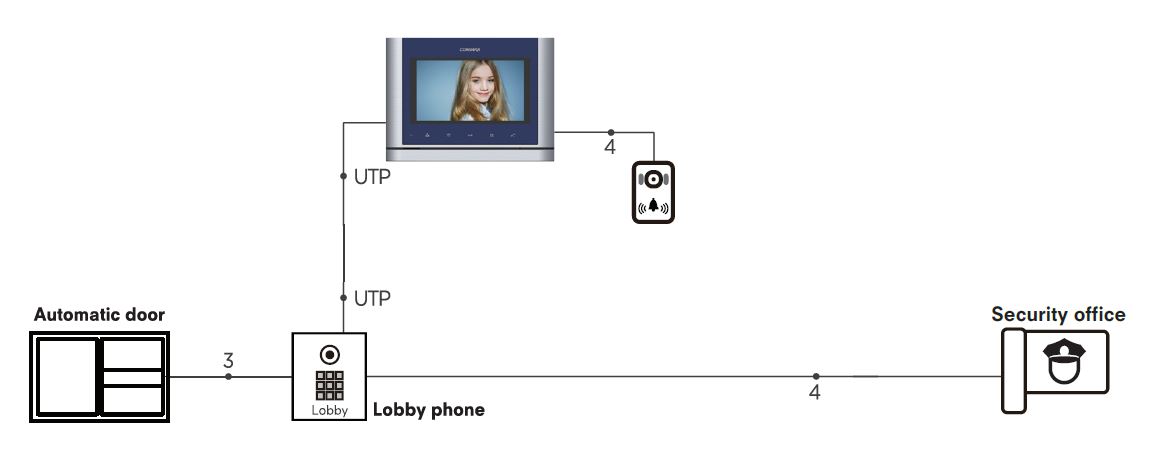

      WIRING DIAGRAM
