GATE VIEW SYSTEM

COMMAX Gate View System is
developed and optimized for small and medium-sized apartment complexes.

CAV-77MGCAV-77MG
GATE VIEW | GATE VIEW MONITOR

CAV-77MG

CAV-77MG is developed and optimized for small and medium sized apartment complexes.

    • Thumbnail
    • Thumbnail
    • VIVID DESIGN

      It creates a luxurious atmosphere with a vivid design.

    • ENHANCED SECURITY

      Enhanced security features provide a better-unmanned security and access control system.

    • CONVENIENCE

      Touch-screen with user-friendly GUI application and various convenience functions enabled.

    FUNCTION

    • 7 inch LED Display

    • Guard call & talk

    • Elevator call function

    • Video talk and door lock release enable

      (both individual and public entrance)

    SPECIFICATION

    Power source
    AC 100-240V, 50/60Hz
    Display
    7 inch LED Display
    Mount type
    Wall-mounted type
    Operating temp.
    0℃~40℃
    Wiring
    UTP(CAT. 5e)
    Consumption
    Max.15W
    Distance
    Lobby phone: 300m
    Security office : 1Km
    Dimension(mm)
    244(W)×180(H)×18(D)

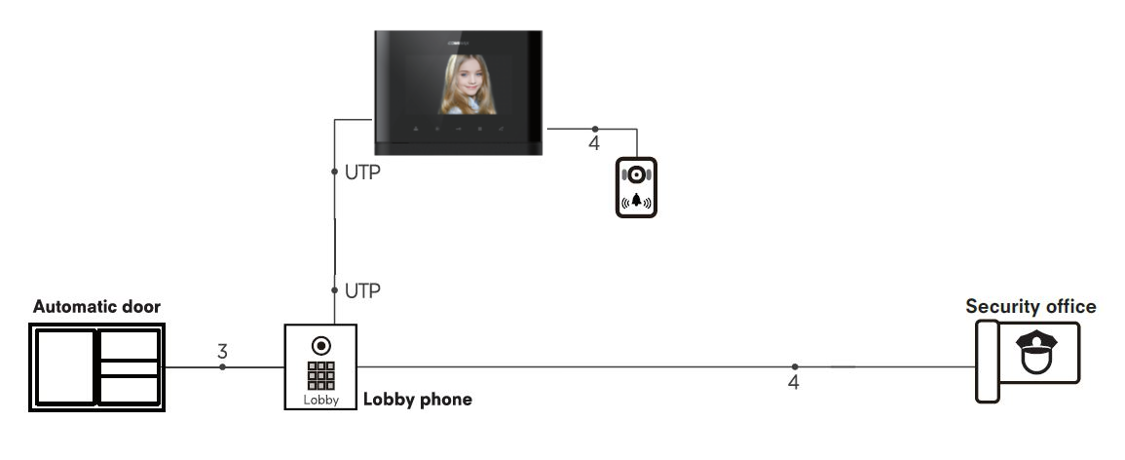

    WIRING DIAGRAM
