VIDEOPHONE SERIES

COMMAX VIDEOPHONE provides
vivid video quality through the
COMMAX’s independent ‘FINE VIEW’ technology.

CDV-70H/CDV-70H2/CDV-70HM2CDV-70H/CDV-70H2/CDV-70HM2CDV-70H/CDV-70H2/CDV-70HM2
    FINE VIEW

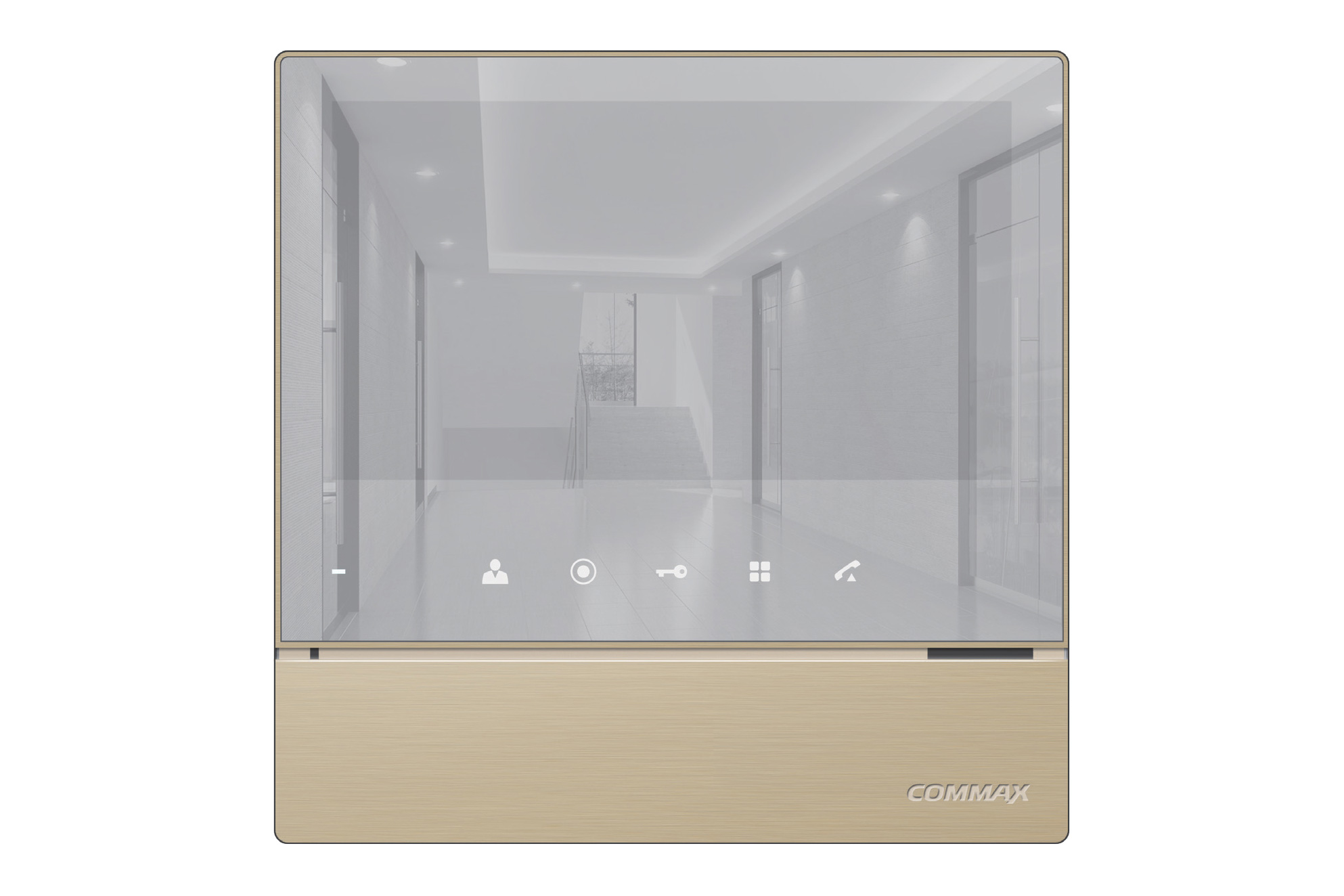

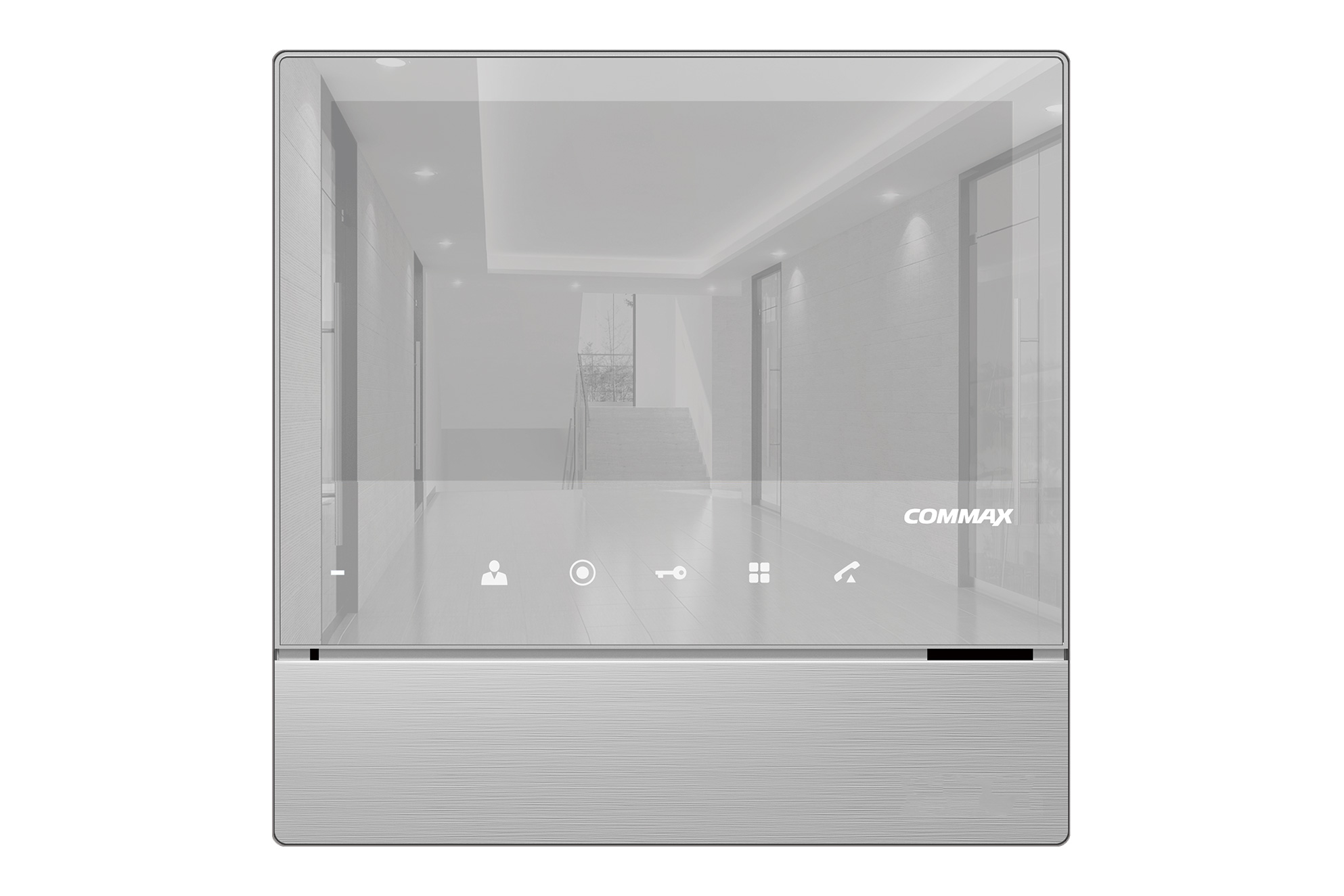

    MONITORCDV-70H/CDV-70H2/CDV-70HM2

    The Ultra Monitor is a 7" hands-free type product that includes all that is essential for a monitor. Users will find it to be highly efficient as the device has incorporated the most fundamental and essential functions with its

      • Thumbnail
      • Thumbnail
      • Thumbnail

      FEATURES

      • FINE COMMUNICATION

        7” color monitor that applied vivid FINE VIEW technology and outstanding audio quality with hands free.

      • INTERCOMMUNICATION

        Up to 2 monitors and interphones each are expandable per household, providing intercommunication function.

      • DOOR ENTRY

        It creates a safer and more convenient living environment with entrance front door release control function.

      FUNCTION

      • 7 inch TFT LED display
      • Video talk and door lock release enable (both individual and public entrance)
      • Support 2 monitors, 1 cameras and 2 Interphones(CDV-70H)
      • Support 2 monitors, 2 cameras and 2 Interphones(CDV-70H2)
      • Memory storing in SD memory (CDV-70HM2)
      • PAL/NTSC convertible
      • Intercommunication with sub-monitor and interphone

      SPECIFICATION

      Power source
      AC 100-240V, 50/60Hz (FREE VOLTAGE)
      Display
      7-inch wide color LCD
      Mount type
      Wall-mounted type
      Wiring
      Door camera: 4 wires
      Interphone: 4 wires
      Distance
      Door camera : 50m(0.65Ø)
      Interphone : 30m(0.65Ø)
      Consumption
      Max.16W/Standby 3W
      Dimension(mm)
      180(W)x180(H)x28(D)

      WIRING DIAGRAM
