VIDEOPHONE SERIES

COMMAX VIDEOPHONE provides
vivid video quality through the
COMMAX’s independent ‘FINE VIEW’ technology.

DRC-4CPHD
    DOOR CAMERA

    DOOR CAMERADRC-4CPHD

    AHD VANDAL-PROOF DOOR CAMERA

      • Thumbnail

      FEATURES

      • AHD Vandal Proof Door Camera
      • 4 wire AHD (1.3M pixel)
      • Illuminance sensor
      • Outdoor model
      • Surface-mounted type
      • House call and talk

      SPECIFICATION

      Power source
      12V (From Monitor)
      Operation Temp.
      -40℃~+50℃
      Wiring
      4 wires
      Minimum Illumination
      0.1Lux (up to 300mm)
      Distance
      28m(0.5Φ)
      50m(0.65Φ)
      Dimension(mm)
      59(W)x164(H)x42(D)

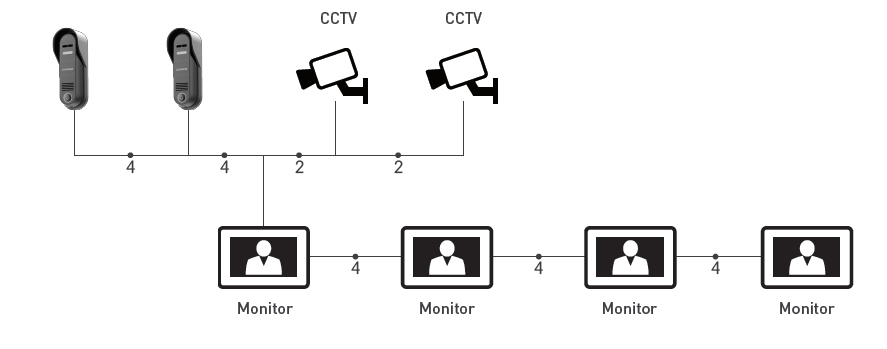

      WIRING DIAGRAM
