VIDEOPHONE SERIES

COMMAX VIDEOPHONE provides
vivid video quality through the
COMMAX’s independent ‘FINE VIEW’ technology.

DRC-nML/RF1<br>(DRC-2/4/6/8/10ML)DRC-nML/RF1<br>(DRC-2/4/6/8/10ML)DRC-nML/RF1<br>(DRC-2/4/6/8/10ML)DRC-nML/RF1<br>(DRC-2/4/6/8/10ML)
    DOOR CAMERA

    MULTI BUTTON DOOR CAMERADRC-nML/RF1
    (DRC-2/4/6/8/10ML)

    Metalo design Multi panel with selectable direct buttons

      • Thumbnail
      • Thumbnail
      • Thumbnail
      • Thumbnail

      FEATURES

      • RF card(13.56MHz) registration and deletion possible
      • 24 Direct buttons panel(DRC-24XM) expansibility – DRC-6,8,10ML
      • 2,4 direct buttons – Short body / 6,8,10 direct buttons – Long body
      • OLED
      • Built-in white LED

      SPECIFICATION

      Power source
      DC 12V/1A
      Operation Temp.
      -20℃ ~ +40℃
      Wiring
      4 wires
      Minimum Illumination
      0.1Lux (up to 300mm)
      Distance
      28m(0.5Φ)
      50m(0.65Φ)
      Dimension(mm)
      DRC-2(4)ML/RF1 : 130(W) X 246(H) X 50(D)
      DRC-6(8)ML/RF1 : 130(W) X 315(H) X 50(D)

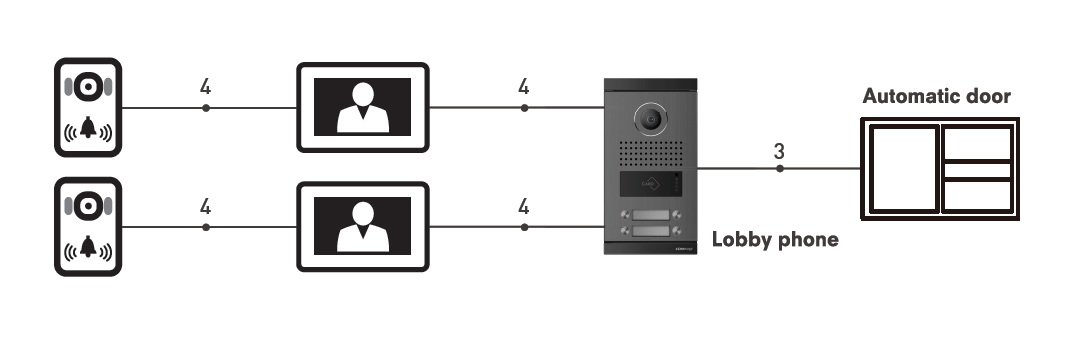

      WIRING DIAGRAM
