HD ANALOG SYSTEM

COMMAX realize the clear and stable video images.

CAD-2M04R24S
    HD ANALOG SYSTEM

    FHD IR DOME CAMERACAD-2M04R24S

      • Thumbnail

      FUNCTION

      • 2Megapixel IR Dome Camera
      • 1/3“ Sony CMOS Image Sensor
      • 1984(H) x 1225(V), 2.43Megapixel
      • AHD2.0, Full-HD 1080p30(25)fps video output
      • 3.6mm Megapixel Fixed Lens
      • 24pcs of IR-LED
      • Backlight compensation using D-WDR technology
      • 2D/3D Noise Reduction
      • Built-in Motion Detection function
      • Privacy Zone Masking (Max. 4Areas)
      • OSD menu control using UTC(Up-The-Coax)

      SPECIFICATION

      Scanning System
      Progressive Scan
      Image Sensor
      1/3" SONY CMOS Sensor
      Total Pixels
      2000(H) x 1241(V) 2.48M pixels
      Effective Pixels
      1984(H) x 1225(V) 2.43M pixels
      Lens Type
      f = 3.6mm, Fixed Lens
      IR Distance
      15m, Φ5 x 24pcs
      Horizontal resolution
      Max. 1100TV Lines
      S/N Ratio
      More than 50dB (AGC off)
      Min. Illumination
      Color:1.0 Lux, BW:0.5 Lux,
      Color DSS:0.002 Lux, BW DSS:0.0008 Lux
      Video Output
      AHD2.0, HD1080p
      Day & Night
      Auto / Color / B&W / EXTERN
      Backlight
      Off / BLC / HSBLC
      D-WDR
      Off / Auto
      DNR
      2D/3D DNR (Off / Low / Middle / High)
      AGC
      1~15
      Electronic Shutter
      Auto / Manual
      Sens-up
      Off / Auto
      White Balance
      ATW / AWB / AWC / Indoor / Outdoor / Manual
      Motion Detection
      Off / On
      Privacy Masking
      Off / On (Max. 4 Aears)
      De-Fog
      Off / Auto
      Sharpness Control
      Level Adjustable
      Power Source
      DC12V / 1.5A
      Power Consumption
      5W
      Operation Temp.
      -10℃~+50℃ / Less than 80% RH
      Storage Temp.
      -20℃~+60℃ / Less than 80% RH
      Dimension
      110(Φ) x 61(H) mm
      Weight
      170g

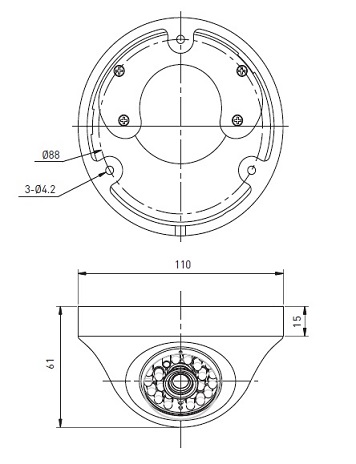

      INSTALLATION
