HD ANALOG SYSTEM

COMMAX realize the clear and stable video images.

CVD-AF04SH/CVD-AF08SH/CVD-AF16SH
    HD ANALOG SYSTEM

    HYBRID DIGITAL VIDEO RECORDERCVD-AF04SH/CVD-AF08SH/CVD-AF16SH

      • Thumbnail

      FUNCTION

      • 4ch/ 8ch/ 16ch AHD3.0 Hybrid DVR
      • 4ch/ 8ch/ 16ch Audio Input & 1ch Audio Output
      • 4ch/ 8ch/ 16ch Alarm Input & 1ch Alarm Output
      • Supports diverse video standards
      • HD video format of AHD3.0 / AHD2.0 / AHD1.0
      • HD-TVI2.0 / HD-CVI2.0 / Analog video format
      • •H.264 Video Compression
      • Diverse recording methods
      • Diverse Search methods
      • Split-screen for live monitoring and playback
      • Dual video outputs of HDMI and VGA
      • RTSP network Streaming support
      • Camera menu control via coaxial cable (UTC function)
      • PTZ control using RS485 port
      • Remote access through web browser, mobile and CDMS

      SPECIFICATION

      Model CVD-AF04SH CVD-AF08SH CVD-AF16SH
      Video Input 4 BNC, 1 IP 8 BNC, 2 IP 16 BNC, 4 IP
      Video Output VGA & HDMI (1080p) VGA & HDMI(1080p, 4K)
      Video Compression H.264
      AHD 3.0 (2048x1536) 9fps/ch 7fps/ch 12fps/ch
      AHD 2.0 (1920x1080) 15fps/ch
      AHD 1.0 (1280x720) 30(25) fps/ch
      Analog 960H (960x480) 30(25) fps/ch
      HDD 1 SATA HDD 2 SATA HDD
      Power Supply DC 12V , 2A DC 12V , 5A
      Operation Temp. -10°C ~ +55°C / -10°C ~ +60°C
      Operation Humidity 10%~90% RH (Non-condensing)
      Weight 3Kg 4.5Kg

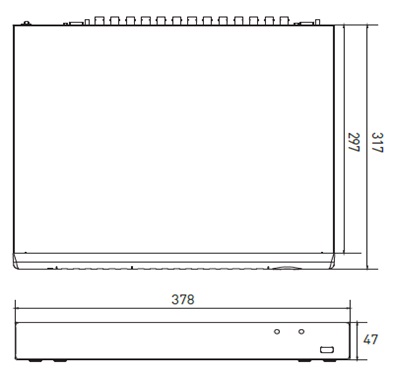

      Dimensions 300(W)x53(H)x227(D 378(W)x50(H)x340(D)

      INSTALLATION
