NETWORK SYSTEM

COMMAX realizes the best performance using
the most stable chipset with the best quality.

CND-2M04R
    NETWORK SYSTEM

    IP DOME CAMERACND-2M04R

      • Thumbnail

      FUNCTION

      • 1/ 2.8" 2M CMOS Progressive Scan
      • H.264 / MJPEG Dual Streaming
      • 30fps @ 1920 x 1080
      • Google Drive Upload Function
      • True Day & Night (ICR)
      • 3.6mm Fixed lens, F1.8
      • Micro SD/SDHC Card Slot
      • WDR
      • Intelligent Video Analysis
      • Dual Power (DC/PoE)
      • ONVIF, PSIA Compliant
      • IR LED : 10 pcs / 10M

      SPECIFICATION

      Camera
      Image Sensor 1/ 2.8" 2M Pixel CMOS
      Total Pixels No. 2000(H) x 1241(V)
      Effective Pixels No. 1984(H) x 1105(V)
      Scanning System Progressive Scan
      Minimum Illumination 0 Lux (IR LED on)
      S/N Ratio 50dB
      IR LED 10 pcs / 10M
      Video Output Signal N/A
      Lens
      Focal length 3.6 mm
      F no. F1.8
      Angle of View Horizontal : 93° / Vertical : 67°
      Focus control Manual
      Lens / Mount Type IR-Cut / Board Mount
      Operational
      Camera OSD Multi-Lingual
      Day & Night Yes
      Image Enhancement AGC/AE/AWB/TDN/DSS/BLC/WDR
      Image Enhance AGC/AE/AWB/DSS
      Event Sources Motion, Sensor Input, Client Disconnection
      Event Notification Email, FTP, Alarm Control, Recording, Google Drive
      Network
      Ethernet RJ-45 10/100 BASE-T
      Video Compression H.264, MJPEG
      Resolution 352 x 240 ~ 1920 x 1080
      Bit rate Primary: 32Kbps~16Mbps, Secondary : 32Kbps~4Mbps
      Audio Compression G.711 / AAC
      Audio Communication Full Duplex
      IP IPv4, IPv6
      Protocol TCP, UDP, IGMP(Multicast), ICMP, DHCP, HTTP, HTTPS, RTP, RTSP, FTP, SNMP, SMTP, UPnP, WS-Discovery, Zero Configuration, DDNS
      Security Password Protection, IP address Filtering, HTTPS(SSL) Certifications
      Application Programming
      Interface
      SDK, ONVIF, PSIA, MPEG-TS
      Language English
      Viewer Web, PC, Mobile Viewer
      Environmental
      Operating Temperature -10°C ~ +50°C / Up to 80%RH
      Certifications CE, FCC, KCE, RoHS
      Power
      Power Source / current consumption 12V DC / 1.0A, PoE (IEEE802.3af)
      Consumption of power Max. 6W
      Mechanical

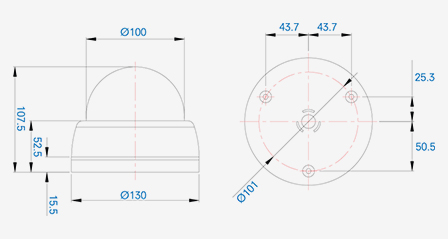

      Dimension (WxH) Ø100 x 107.5mm (Ø x H)
      Weight 500g

      INSTALLATION
