NETWORK SYSTEM

COMMAX realizes the best performance using
the most stable chipset with the best quality.

CNV-2M3VR
    NETWORK SYSTEM

    IP VANDAL DOME CAMERACNV-2M3VR

      • Thumbnail

      FUNCTION

      • 1/ 2.8" 2M CMOS Progressive Scan
      • H.264 / MJPEG Dual Streaming
      • 30fps @ 1920 x 1080
      • True Day & Night (ICR)
      • If= 2.8 ~ 11 mm Varifocal lens, F 1.2
      • Auto DC Iris
      • Micro SD Memory Card Slot
      • WDR
      • Intelligent Video Analysis
      • Dual Power (DC/PoE)
      • ONVIF, PSIA Compliant
      • IR LED : 30 pcs / 25M
      • Vandal Dome, IP67

      SPECIFICATION

      Camera
      Image Sensor 1/ 2.8" 2M Pixel CMOS
      Total Pixels No. 1952(H) x 1092(V)
      Effective Pixels No. 1920(H) x 1080(V)
      Scanning System Progressive Scan
      Minimum Illumination 0 Lux (IR LED on)
      S/N Ratio 50dB
      IR LED 30 pcs / 25M
      Video Output Signal N/A
      Lens
      Focal length F=2.8~11 mm
      F no. F1.2
      Angle of View Horizontal : 92.5°(W)~29°( T ) / Vertical : 68°(W) ~ 21.7° ( T )
      Focus control Manual
      Lens / Mount Type Auto DC Iris, Varifocal lens, IR-Cut / Board Mount
      Operational
      Camera OSD Multi-Lingual
      Day & Night Yes
      Image Enhancement AGC/AE/AWB/TDN/DSS/BLC/WDR
      Event Sources Motion, Sensor Input, Client Disconnection, Audio Detection
      Event Notification Email, FTP, PTZ preset, Alarm Control, Recording, IVS, Google Drive
      External Device 1 Sensor In / 1 Alarm Out / 1 RS-485 port
      Network
      Ethernet RJ-45 10/100 BASE-T
      Video Compression H.264, MJPEG
      Resolution 352 x 240 ~ 1920 x 1080
      Bit rate Primary: 32Kbps~16Mbps, Secondary : 32Kbps~4Mbps
      Audio Compression G.711 / AAC
      Audio Communication Full Duplex
      IP IPv4, IPv6
      Protocol TCP, UDP, IGMP(Multicast), ICMP, DHCP, HTTP, HTTPS, RTP, RTSP, FTP, SNMP, SMTP, UPnP, WS-Discovery, Zero Configuration, NTP, DDNS
      Security Password Protection, IP address Filtering, HTTPS(SSL) Certifications
      Application Programming
      Interface
      SDK, ONVIF, PSIA, MPEG-TS
      Language English
      Viewer Web, PC, Mobile Viewer
      Environmental
      Operating Temperature -10°C ~ +50°C / Up to 80%RH
      Certifications CE, FCC, KCE, RoHS
      Power
      Power Source / current consumption 12V DC / 1.5A, PoE (IEEE802.3af)
      Consumption of power Max. 6W

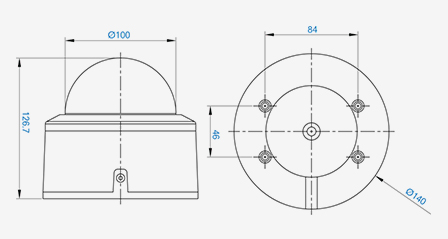

      Mechanical
      Dimension (WxH) Ø100 x 126.7mm (Ø x H)
      Weight 890g
      IP Rating IP 67

      INSTALLATION
