NETWORK SYSTEM

COMMAX realizes the best performance using
the most stable chipset with the best quality.

CNV-2M03RS
    NETWORK SYSTEM

    IP 2MP VANDAL IR MINI DOME CAMERACNV-2M03RS

      • Thumbnail

      FUNCTION

      • 2Megapixel IR Vandal Mini-dome Camera
      • 1/3“ Progressive Scan CMOS Image Sensor
      • Fixed Lens, f=2.8mm
      • Video streaming performance of 30fps@1920x1080
      • Superior video quality under low bitrate
      • Multi-stream, Dual-encoding
      • 1pcs of IR-LED
      • IR distance of Max. 7m
      • Supports Corridor mode
      • Dust & Water-proof of IP65

      SPECIFICATION

      Camera
      Image Sensor 1/3" Progressive Scan CMOS
      Max. Resolution 1920 x1080
      Scanning System Progressive Scan
      Min. Illumination Color 0.2 Lux, IR On 0 Lux
      IR-LED 1pcs / 6~7m
      Lens
      Focal Length f = 2.8mm
      Angle of View 107°
      Lens / Mount Type Fixed Lens/ Board Mount
      Camera Function
      Day & Night ICR
      Gain Control Auto / Manual
      White Balance Auto
      WDR D-WDR
      Digital Noise Reduction 2D/3D DNR
      Motion Detection Off / On
      Privacy Zone Masking Max. 4 Areas
      Corridor Mode Off / On
      Event Notification Email Notification
      Network
      Ethernet Ethernet 10/100 Base-T (RJ-45)
      Video Compression H.264 High/ Main/ Baseline Profile, MJPEG
      Max. Frame rate 30fps @ 1920 x 1080
      Bitrate Control CBR / VBR
      Audio Input / Output 1ch Audio Input / 1ch Audio Output
      Audio Compression G.711, RAW_PCM
      IP IPv4 / IPv6
      Protocol HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, PPPoE
      Security User Verification, Communication Encryption
      Memory Slot Micro SD/SDHC, Up to 32GB
      ONVIF Onvif 2.4
      Remote Access Web, PC, Mobile Viewer
      Environmental
      Operating Temp / Humidity -20°C ~ +55°C / 0 ~ 90%RH
      IP Rating IP65
      Power
      Input Power  DC12V, PoE
      Power Consumption 2.5W (IR-LED Off), 5W (IR-LED On)
      Mechanical
      Color / Material White / Aluminum
      Dimension 100(Ø) x 53(H) mm
      Weight Approx. 650g

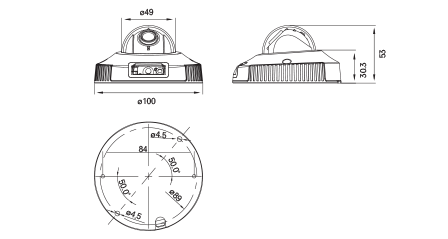

      INSTALLATION
