FEATURES

The main control panel supplies power to COMMAX’s nurse call system devices and relays signals among them, which include relaying a notification to the main nurse call station for the case of emergency in hospital rooms including restrooms.

FUNCTION

  • Power supply and signal relay
  • Automatic UPS connection in case of a blackout

SPECIFICATION

Power source
AC 220- 240V, 60Hz
Mount type
Surface-mounted type
Wiring
Common 4 wires 2 wires separate
Distance
100m(0.65Ø)

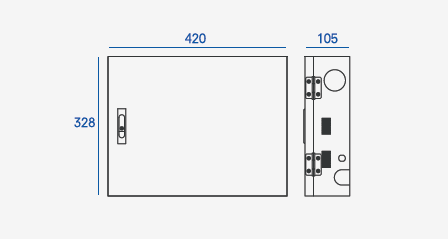

Dimension(mm)
420(W)×328(H)×105(D)

INSTALLATION
