MULTI PANEL SERIES

MULTI PANELCMP-2BC(S)/4BC(S)

Multi Panel is a door station system in conjunction with Video phones that provides the optimum values via access control of a common entrance.

  • 제품썸네일이미지

Características

  • 1 Look, 2 Sizes, 9 Panels

    MULTI PANAL SERIES is an ultimate door-entry solution with usability and expandability for various sites of the world that require an entrance access control. It is an optimized unmanned security system for residential areas, single family houses, small and medium sized apartment, villas, and offices. * Applied systems : Single Videophone system Single Audiophone system

Funciones

ENHANCED SECURITY
Hidden pin-hole type camera applied
Vandal proof die-casting
Weather resistance (tested operating up to -40)

OPTIMIZED SYSTEM
Customized module provided for user environment and household unit structure
Single Vidiophone, audiophone and door entry system enabled
2-wire, 4-wire, n+3, 1 UTP wire methods available

FUNCTION
3 Way Access Method (Each touch button per household,RFID card, Password)
LED for night-time touch button use
Name plate enabled


Dimensiones

Power source
DC 12V, 1A
Mount type
Built-in(Flush mounted)
Operating temp.
-40℃ ~ +60℃
Image sensor
C-MOS(Pin-hole type) (CMP-2BC(S)/4BC(S))
Dimension
130(W)x315(H)x12(38)(D) 130(W)x249(H)x12(38)(D)

Diagrama

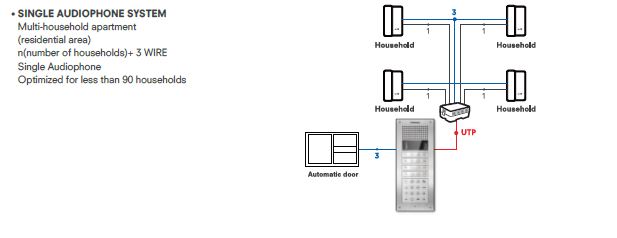

SINGLE AUDIOPHONESYSTEM.JPG

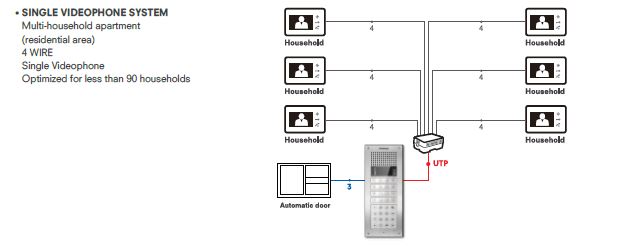

SINGLE VIDEOPHONE SYSTEM.JPG
